The Modena WC with integrated hand wash is composed of a single block toilet and its hand wash directly placed on its tank.
Practical, the toilet washes hands will find its place in a small narrow toilet.
The Ground toilet is treated antibacterial with a horizontal output. The Duroplastic washer of the toilet is equipped with a fall brake for a quiet and gentle closure.
The toilet tank is equipped with a 3/6 litre water saving mechanism. The double control button is on the front of the water tank.
You will optimize your water consumption thanks to the basin that supplies the tank of the toilet bowl. This system allows you to save real water. For safety, the toilet tank is equipped with a non-overrun safety.
The rectangular hand-washer has a tap beach to the left. It installs with a cold water tap. This integrated hand washer without too full must be installed with a grilled bond or for more aesthetics with a free flow bond in chromed brass (Non Fournis).
The dimensions of the handwasher are very compact, 37 cm long and 19.5 cm wide and therefore ideal for small spaces.
Maintenance advice: Clean the toilet and ceramic basin with clear water with a soft sponge. Do not use corrosive, abrasive or acidic products.
Composition of the Monobloc Modena WC
- WC to be laid
- Cup and tank in shiny white ceramics
- Cuvette round shape
- Cuvette WC horizontal exit
- WC tank with 3/6 Litres mechanism with push button in front
- Overrun safety
- White WC slit with fall brake: Provided
- Stainless steel hinges
Composition of Lava Main Gain of Place Design
- White ceramic
- Discharge diameter 45 mm
- Punctured tap line on the left (35 mm drilling Ø).
- Only with cold water tap not provided
- Free discharge (not provided)

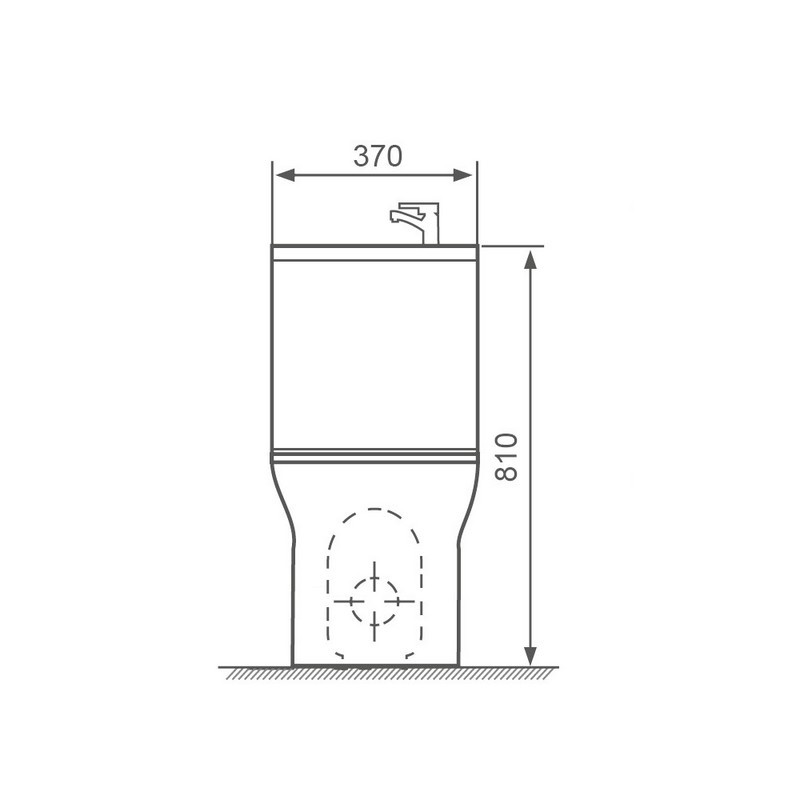

WC Design dimensions
- Height: 81 cm
- Length: 37 cm
- Depth: 70 cm
- Seat height (without cutting): 40.5 cm
- Escape diameter 100 mm
- Height ground / evacuation : 180 mm
- Wall / evacuation distance: 125 mm
Dimensions of the tank wc
- Height: 41 cm
- Length: 37 cm
- Depth : 19,5 cm
Dimensions of the wash hand design
- Depth : 19,5 cm
- Length: 37 cm
- Weight: 53 kg
Warranty 2 years
Not including: Grid bond or Free flow bond - Faucets - Stop valve - Ground mountings - Escape sleeve WC
Make: Rue du Bain
