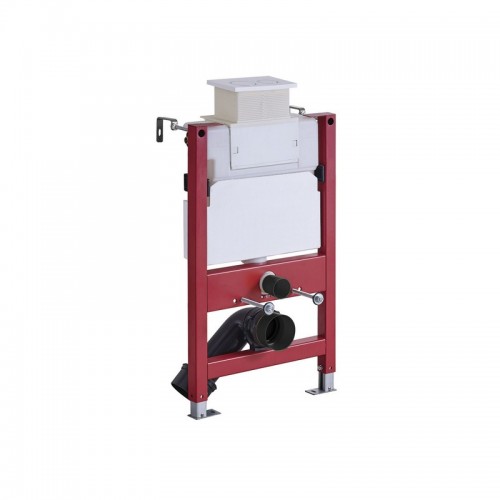

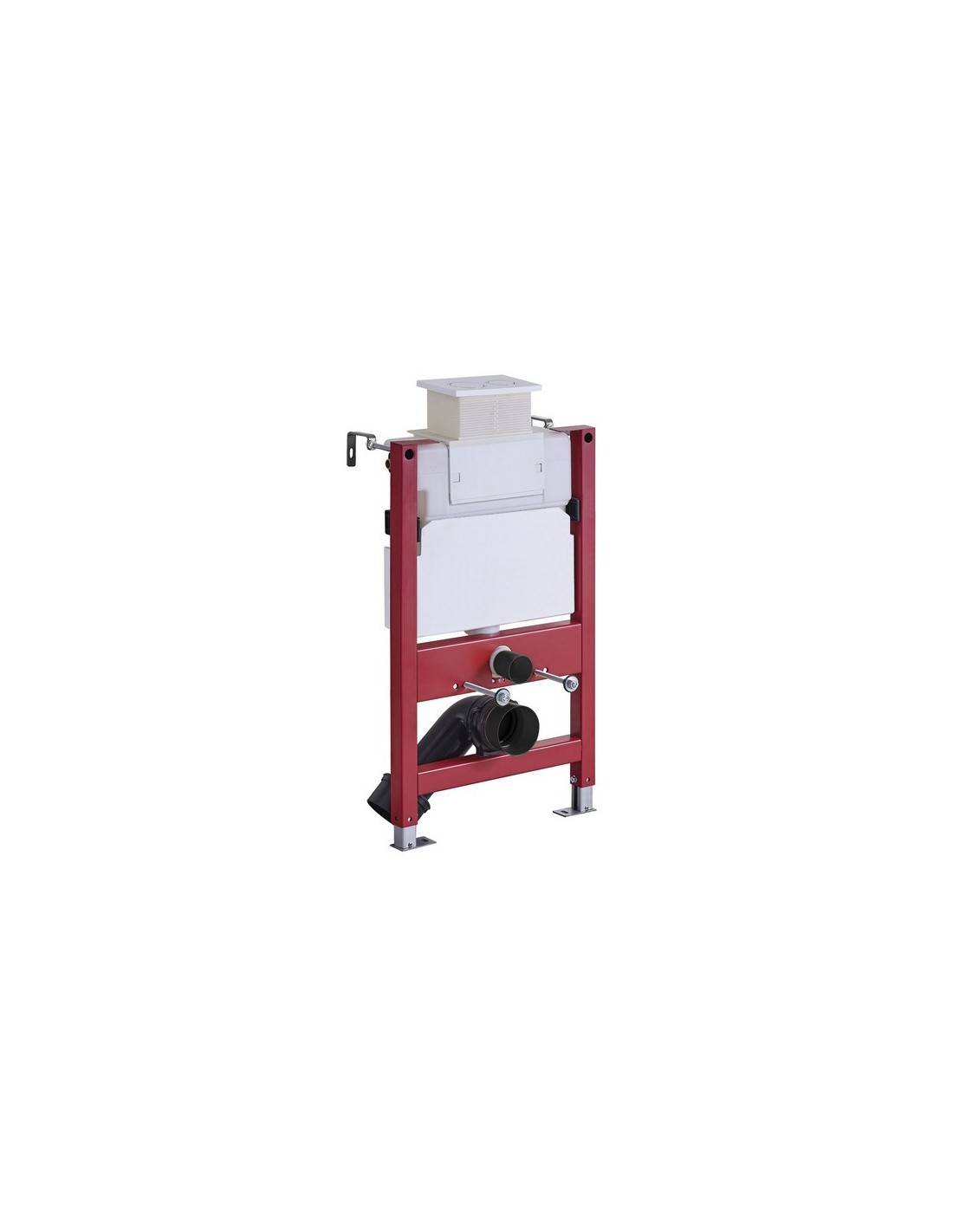

The Support building Window for hanging WC is low height 82 cm. Window is a universal frame for hanging toilets under window or in a mansard room. It is fixed against a wall and on the ground exclusively against a full wall, carrying wall or agglo. He's rheight adjustable to install your Cuvette WC suspended or PMR toilet (Person with reduced mobility).
The hunting mechanism is accessible by a visiting hatch on the top or at the front. The tank is insulated to avoid condensation. Double flow 3/6 liters. Comes with a double white round control plate.
Equipped with a silent floating tap. Completely supplied with flushing tube, bulkhead crossing tunnel, shut-off valve, tank-tube, universal discharge system, vertical exit or horizontal exit with single connection. Complete screwdriver, adjustable wall fasteners, threaded rods and nut cover. PVC discharge 100 mm diameter adjustable in depth.
Characteristics of Support building Window for hanging toilet:
- Low height chassis for WC under window or attic room
- For installation exclusively on a carrying wall, in front of a full wall or in agglo.
- For mounting a suspended toilet bowl with mounting bracket 18 or 23 cm.
- For a hat height of 0 to 20 cm.
- Installation toilet toilet suspended or toilet PMR
- Recessed tank with front or upper trigger control.
- Mechanical double flow tank 3 or 6 litres
- Isolated tank against condensation
- Silent float valve
- Escape pipe to be glued in PVC diameter 100 mm
- Floor and wall mounting equipment
- Binding kit with drain and feeding sleeves provided.

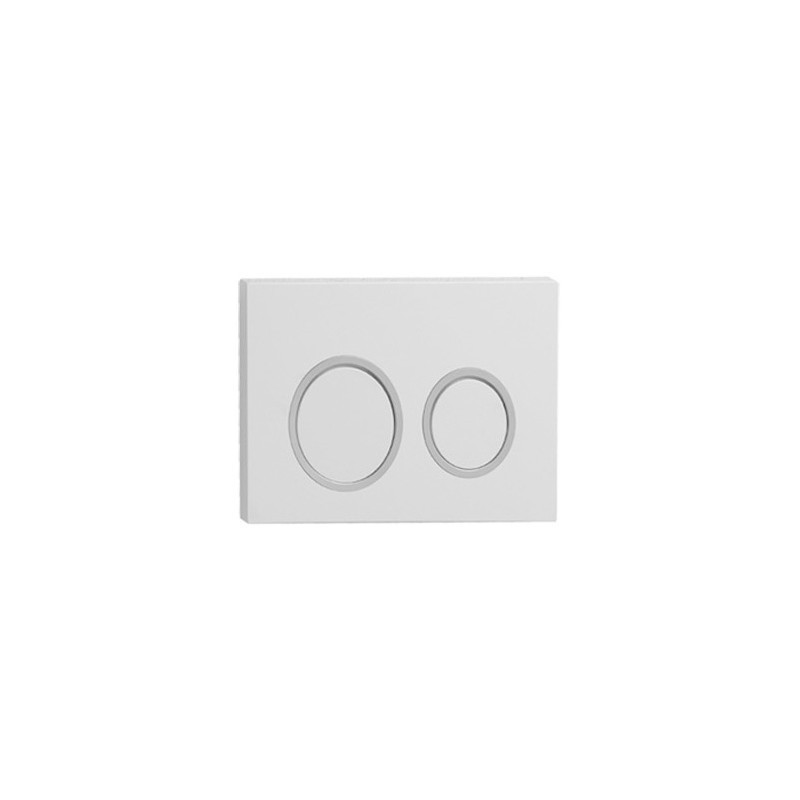

- Comes with a white round double control trigger plate

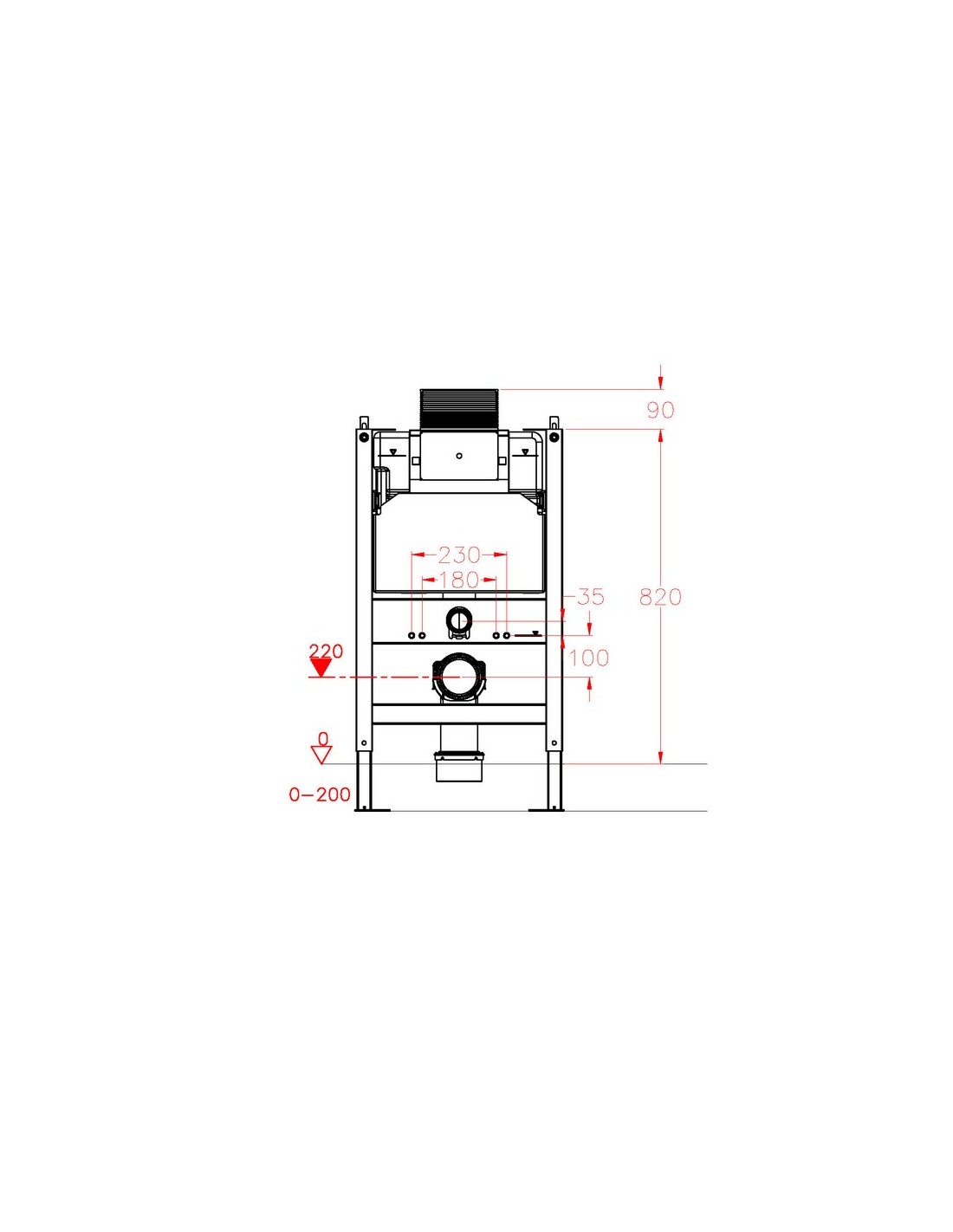

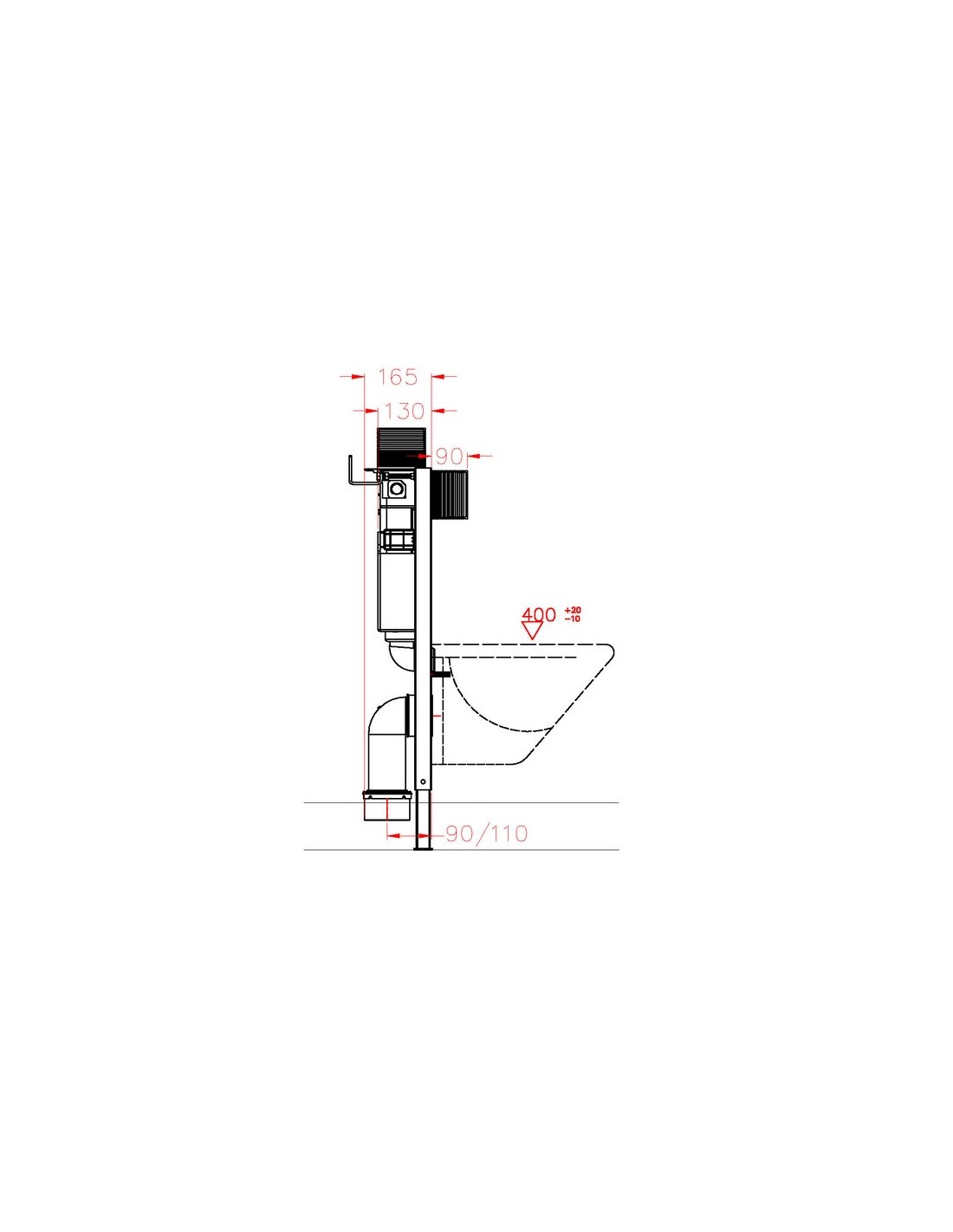

Building dimensions WC suspended:
- Width: 500 mm
- Adjustable depth : 130 / 165 mm
- Height: 820 mm.
- Weight: 14.50 kg
Guarantee: 2 years
Not included: Cuvette WC suspended and Slaughterers.
Brand : Rue du Bain
