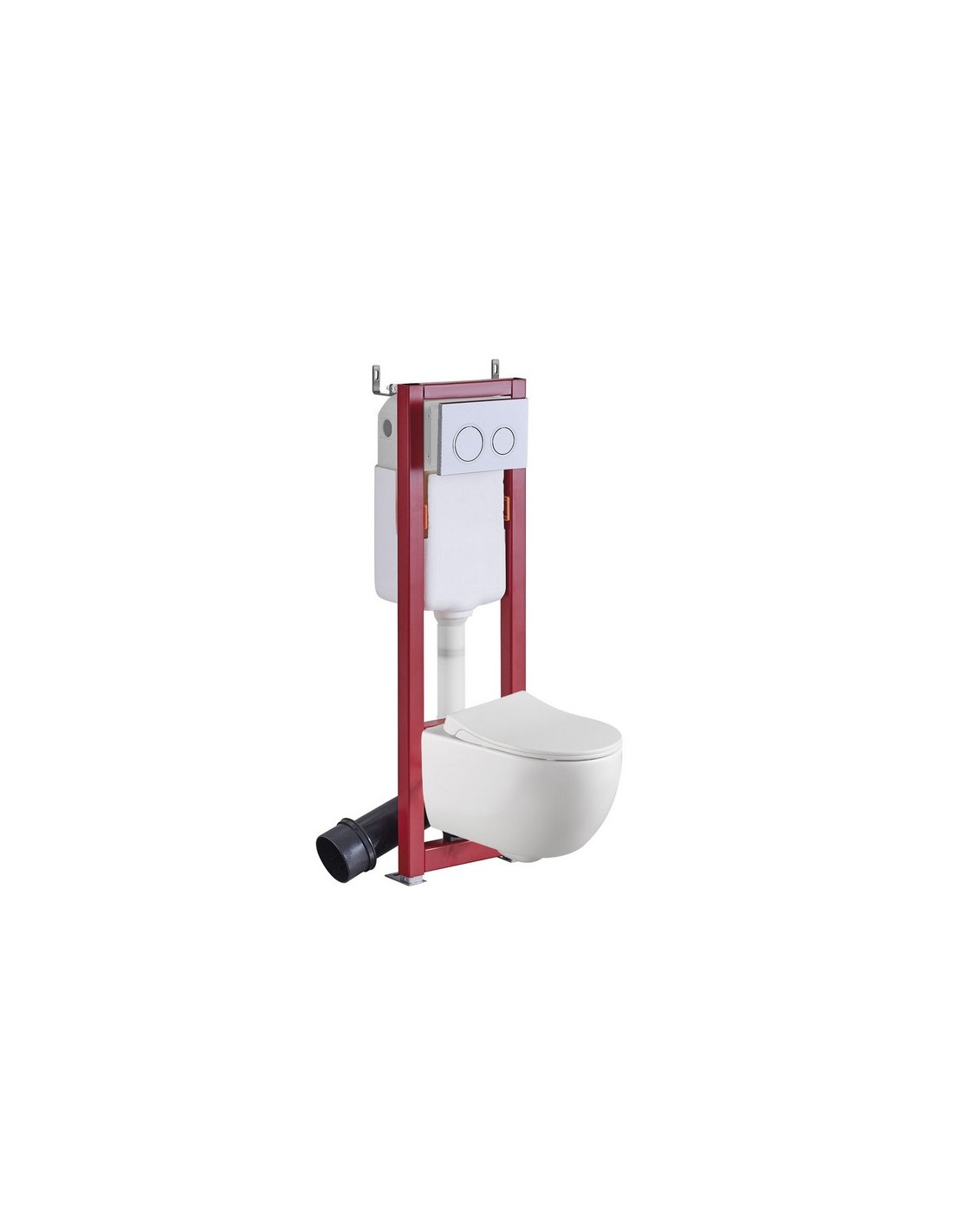

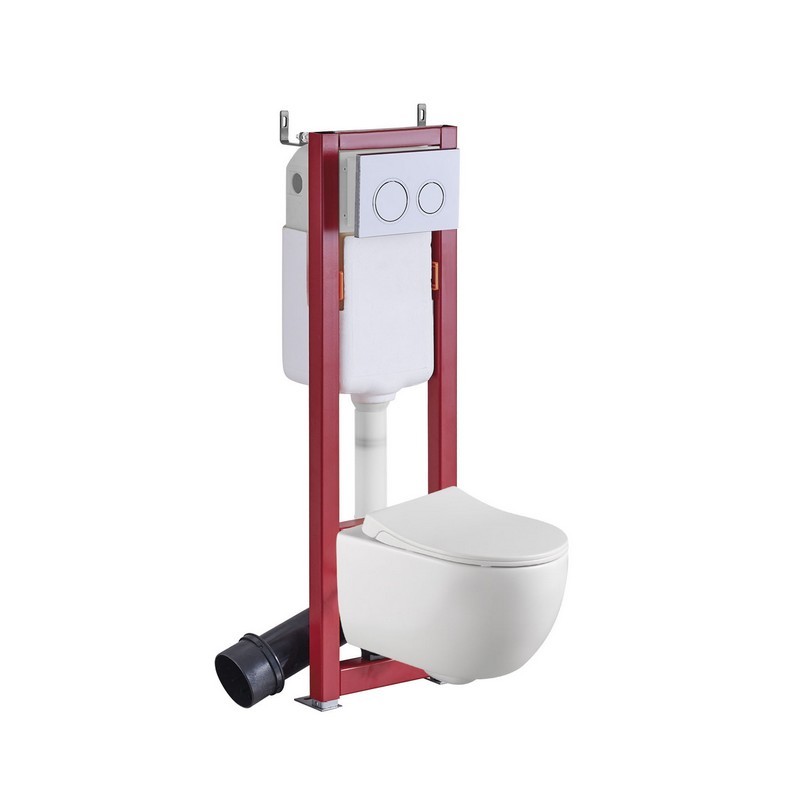

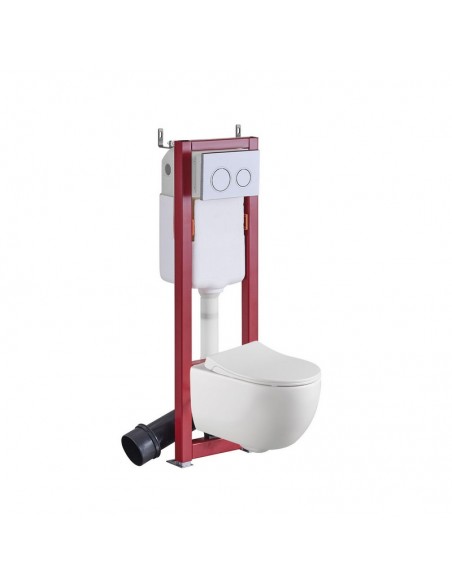

The Support building Renov is a special universal frame Angle or for a narrow toilet. This chassis is only 300 mm wide. It attaches itself against a wall and on the ground against a wall full, carrying wall or agglo. He's rheight adjustable to install your Cuvette WC suspended or PMR toilet (Person with reduced mobility).
This chassis accepts that the bowls WC suspended with an 18 cm mounting bracket only.
The hunting mechanism is accessible through a visiting hatch. The tank is insulated to avoid condensation. Double flow 3/6 liters. Comes with a white round control plate Renov.
Equipped with a silent floating tap. Completely supplied with flushing tube, bulkhead crossing tunnel, shut-off valve, tank-tube, universal discharge system, vertical exit or horizontal exit with single connection. Complete screwdriver, adjustable wall fasteners, threaded rods and nut cover. PVC discharge 100 mm diameter adjustable in depth.
Characteristics of Construction-support for hanging toilet :
- Special frame Angle or for a narrow toilet (low width 300 mm)
- For installation exclusively on a carrying wall, in front of a full wall or in agglo.
- For mounting a suspended toilet bowl with mounting bracket 18 cm exclusively.
- For a hat height of 0 to 20 cm.
- Installation toilet toilet suspended or toilet PMR
- Recessing tank with frontal trigger control
- Mechanical double flow tank 3 or 6 litres
- Isolated tank against condensation
- Silent float valve
- Escape pipe to be glued in PVC diameter 100 mm
- Floor and wall mounting equipment
- Binding kit with drain and feeding sleeves provided.

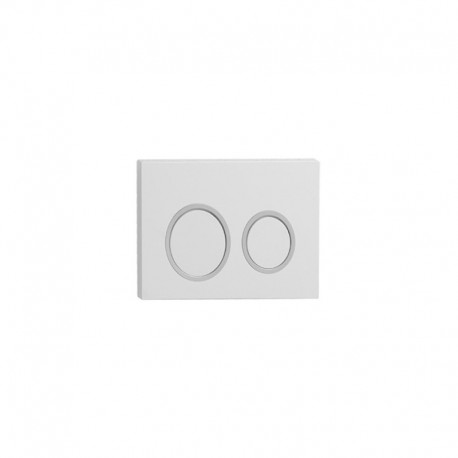

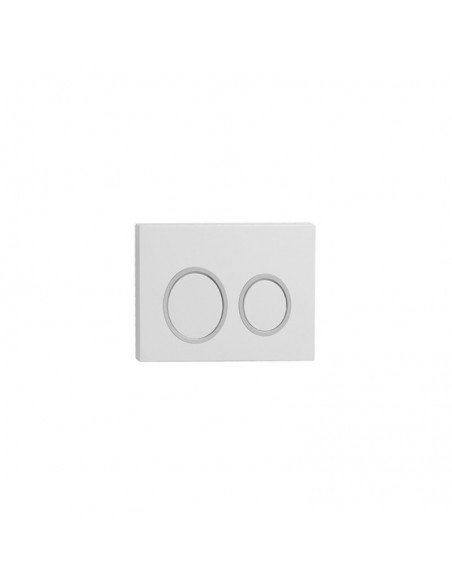

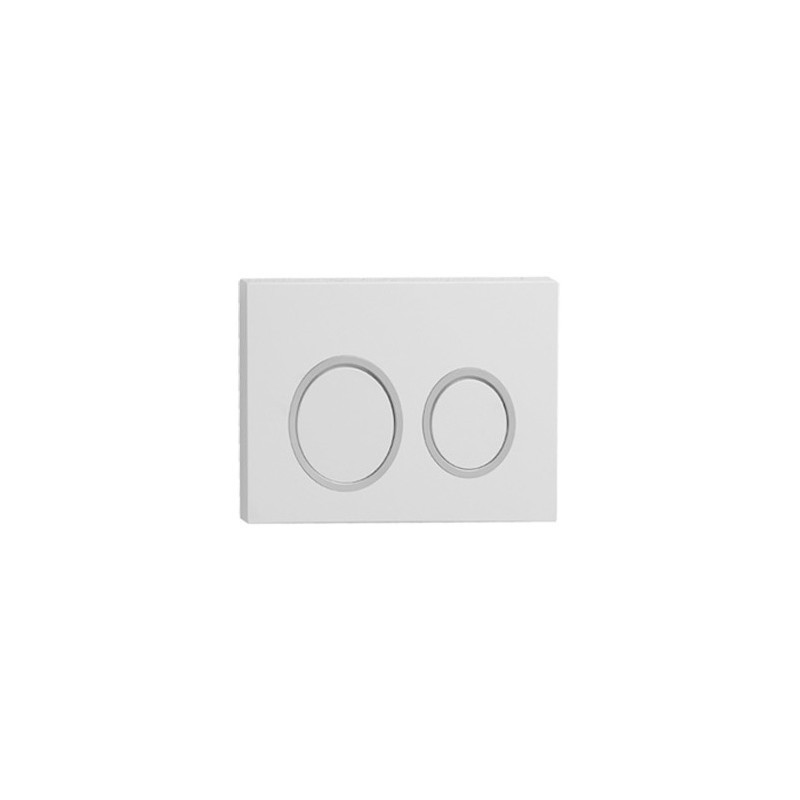

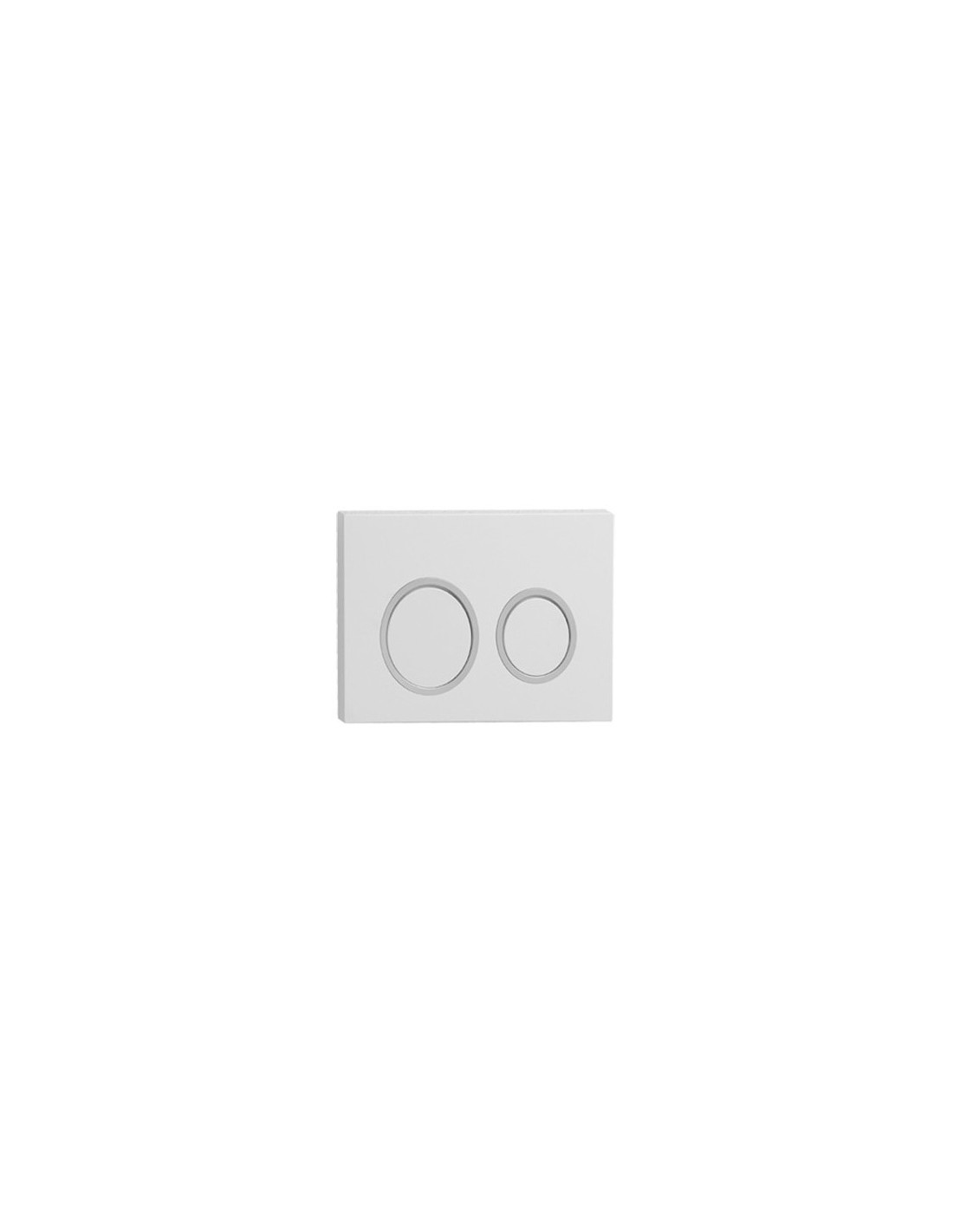

- Comes with a white round double control trigger plate

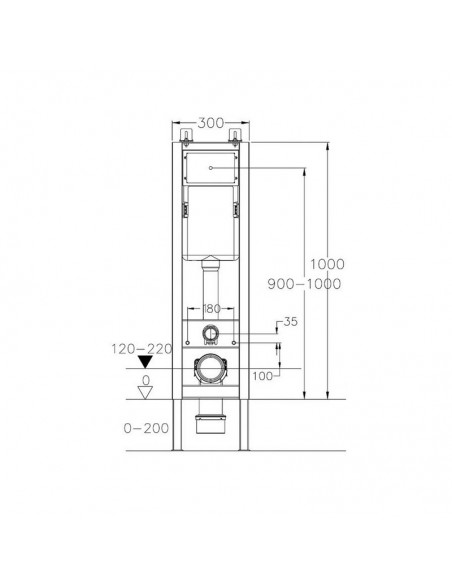

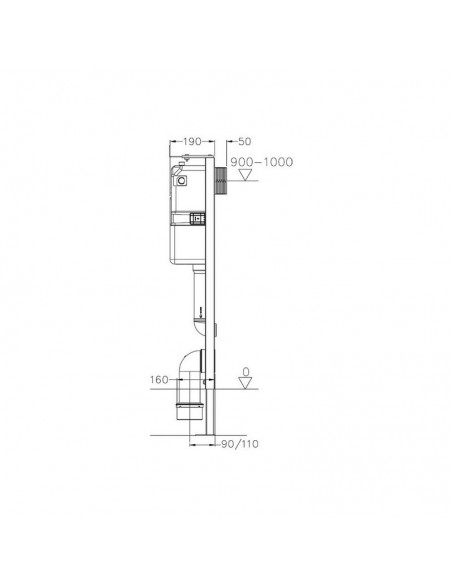

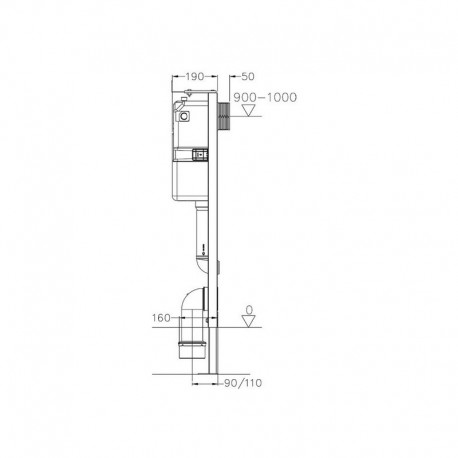

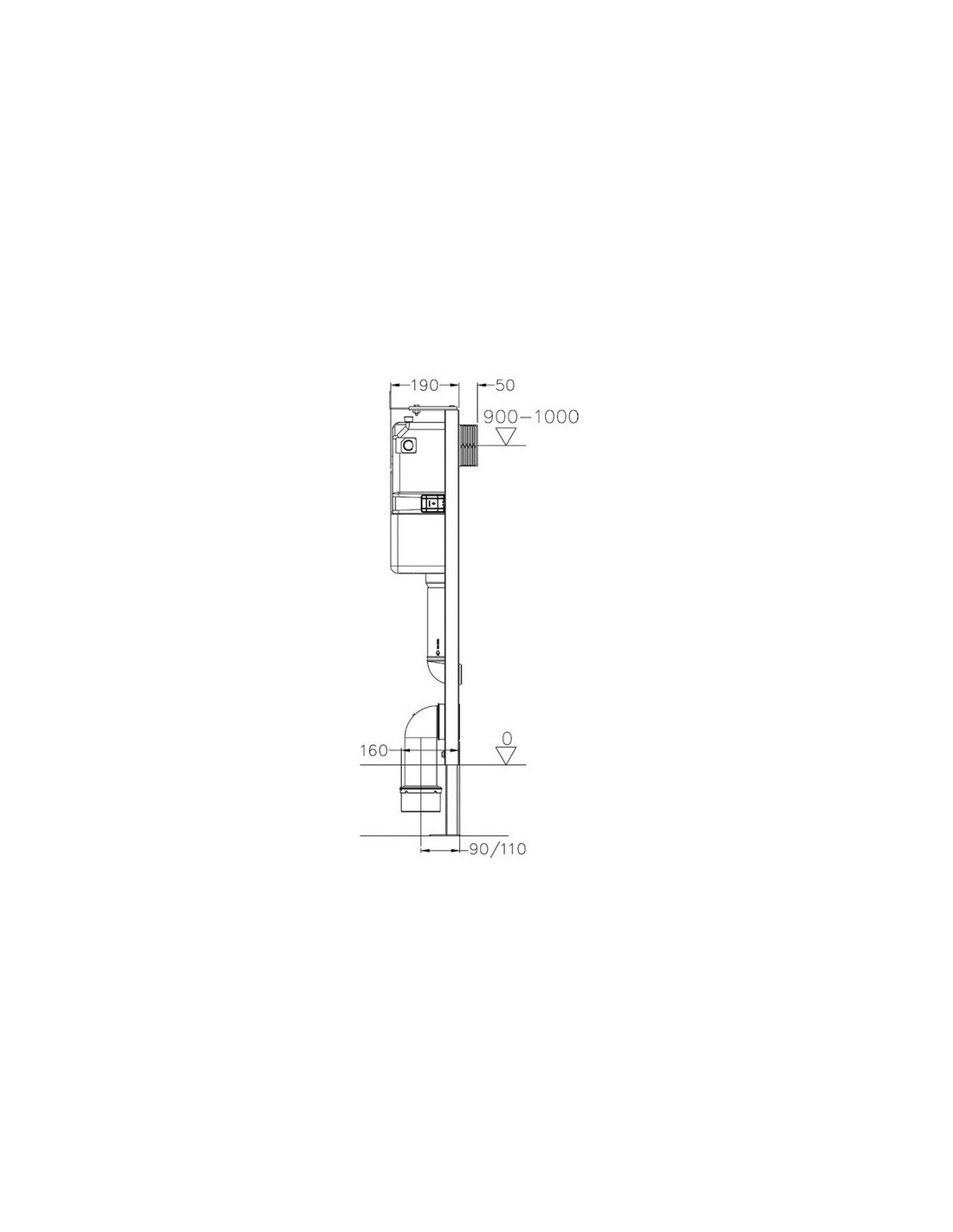

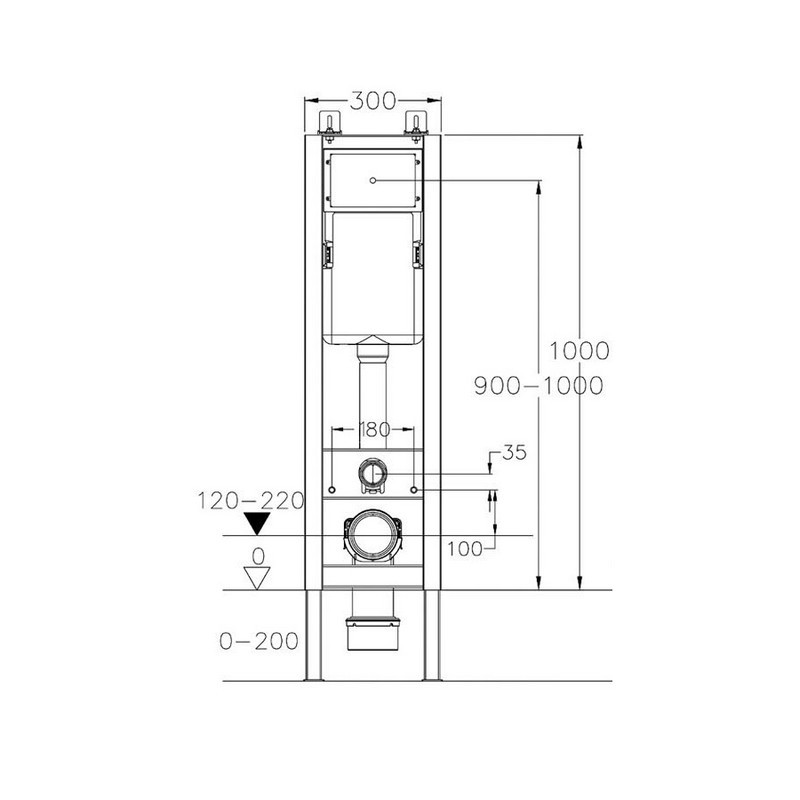

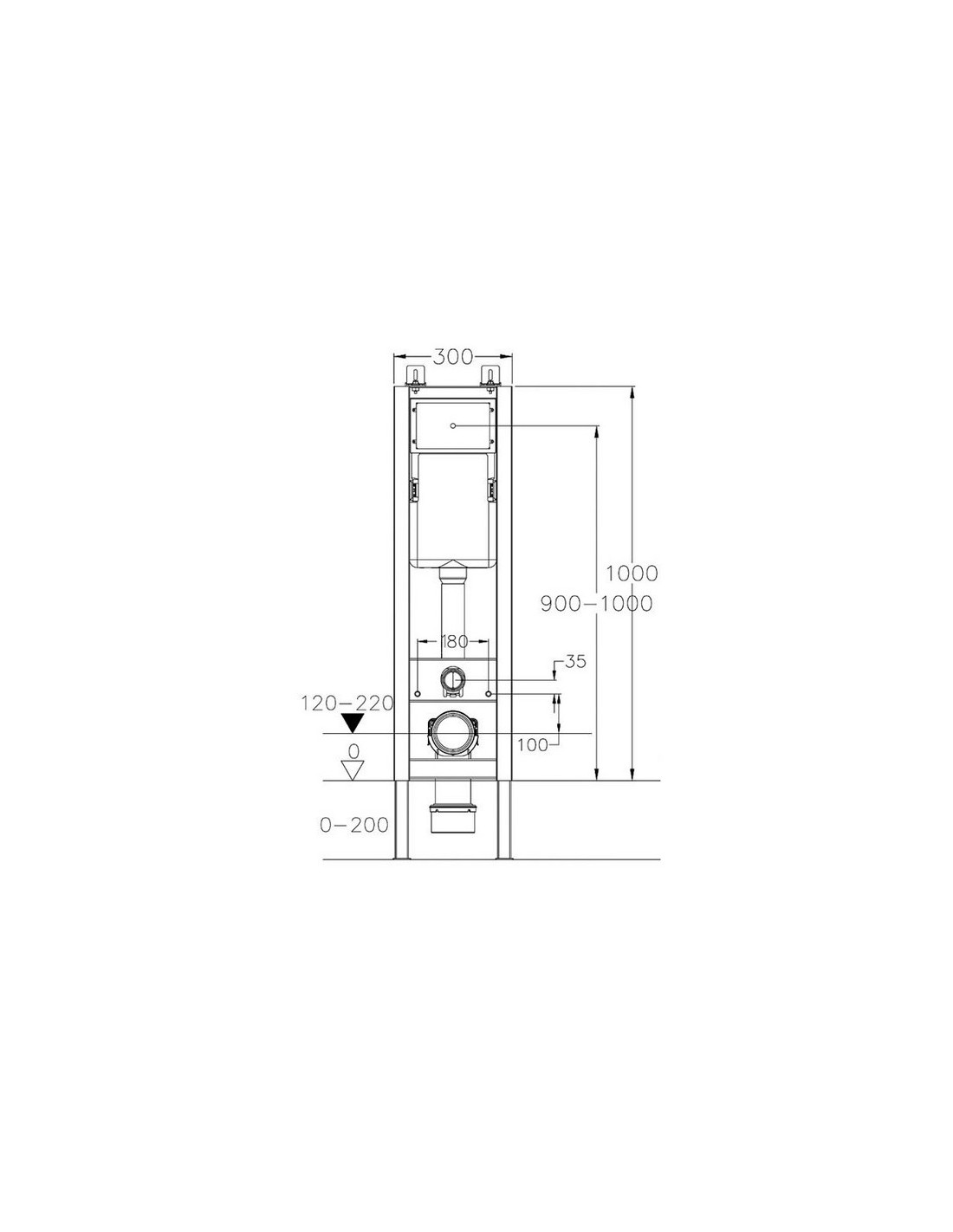

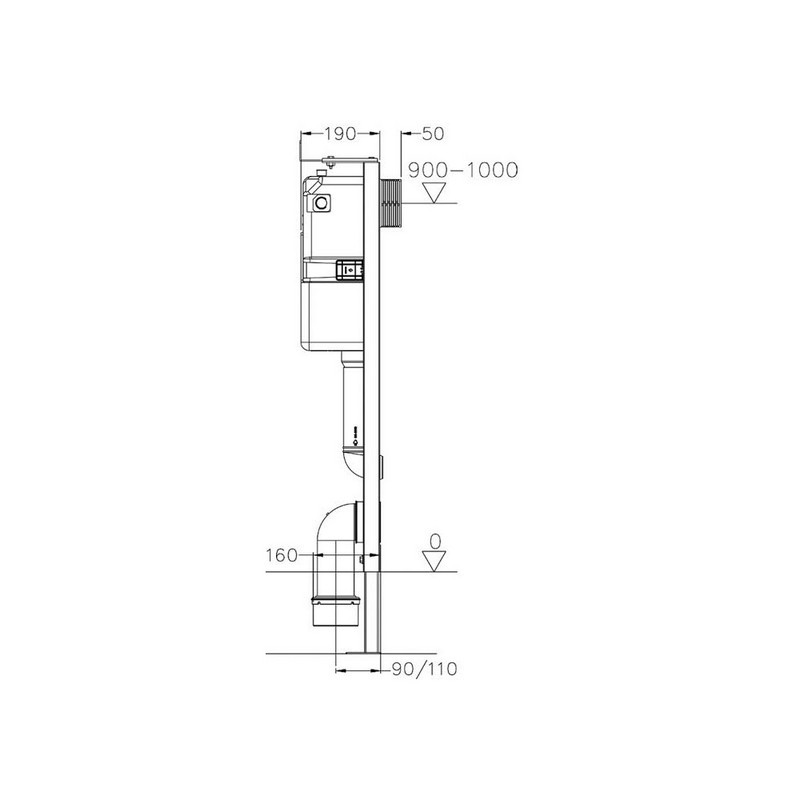

Building dimensions WC suspended:
- Width: 300 mm
- Depth: 190 mm
- Height: 1000 mm.
- Weight: 14,5 kg
Guarantee: 2 years
Not included: Cuvette WC suspended and Abattoir.
Brand : Rue du Bain
