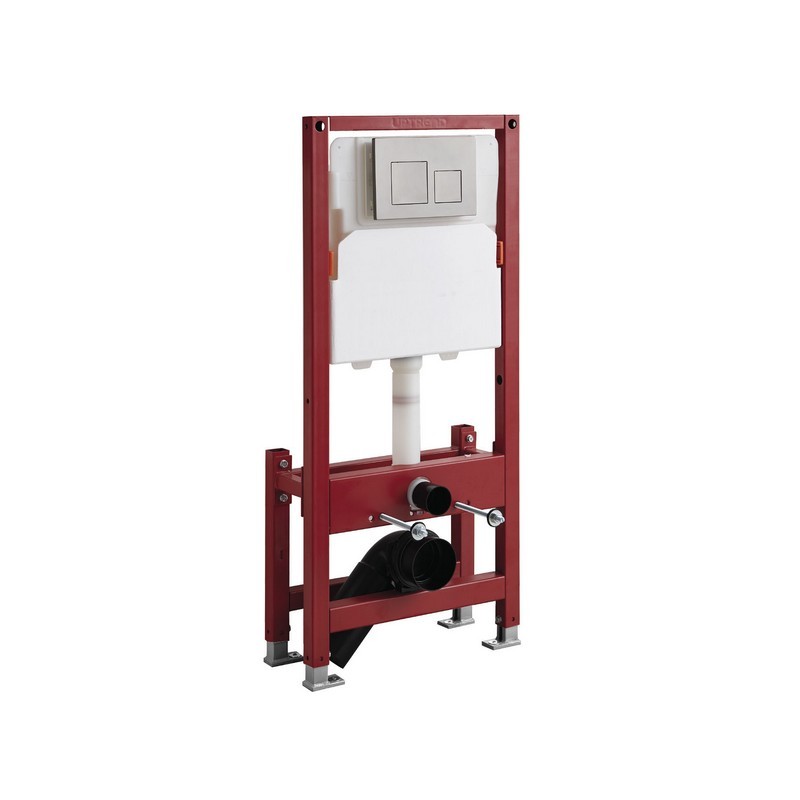

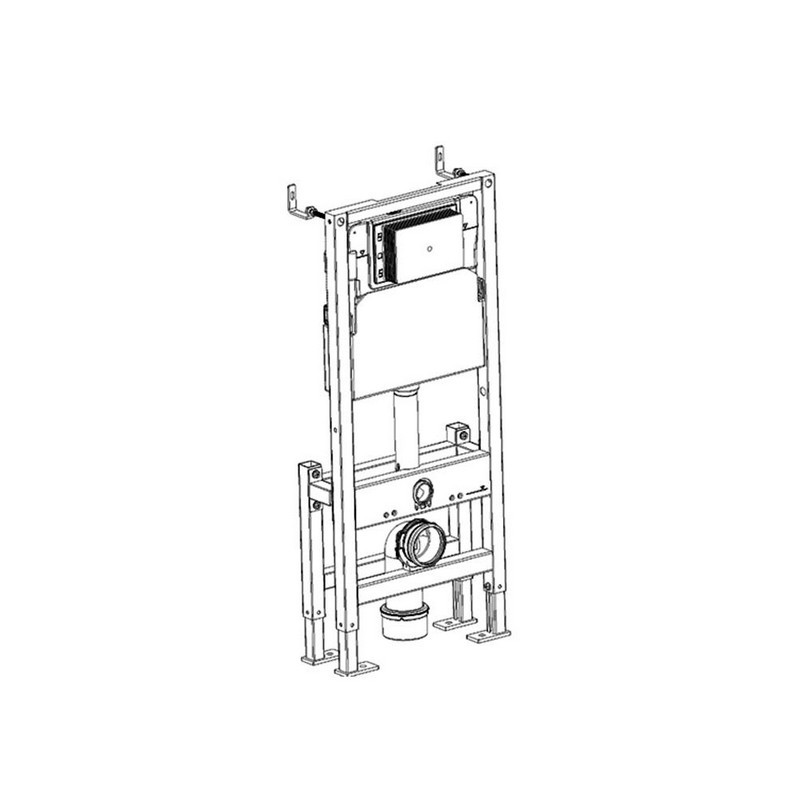

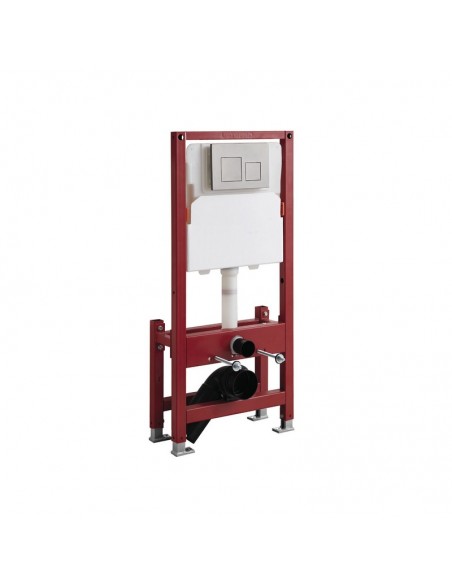

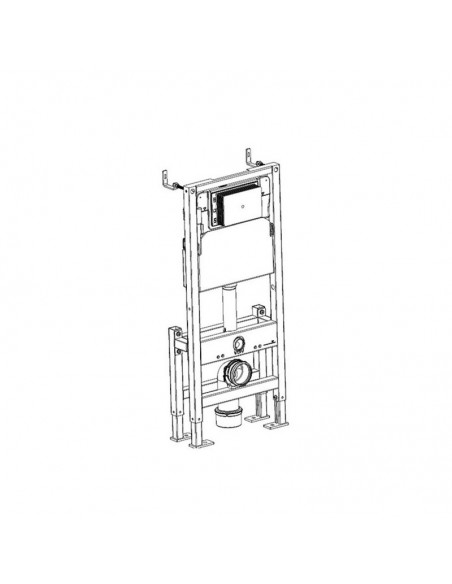

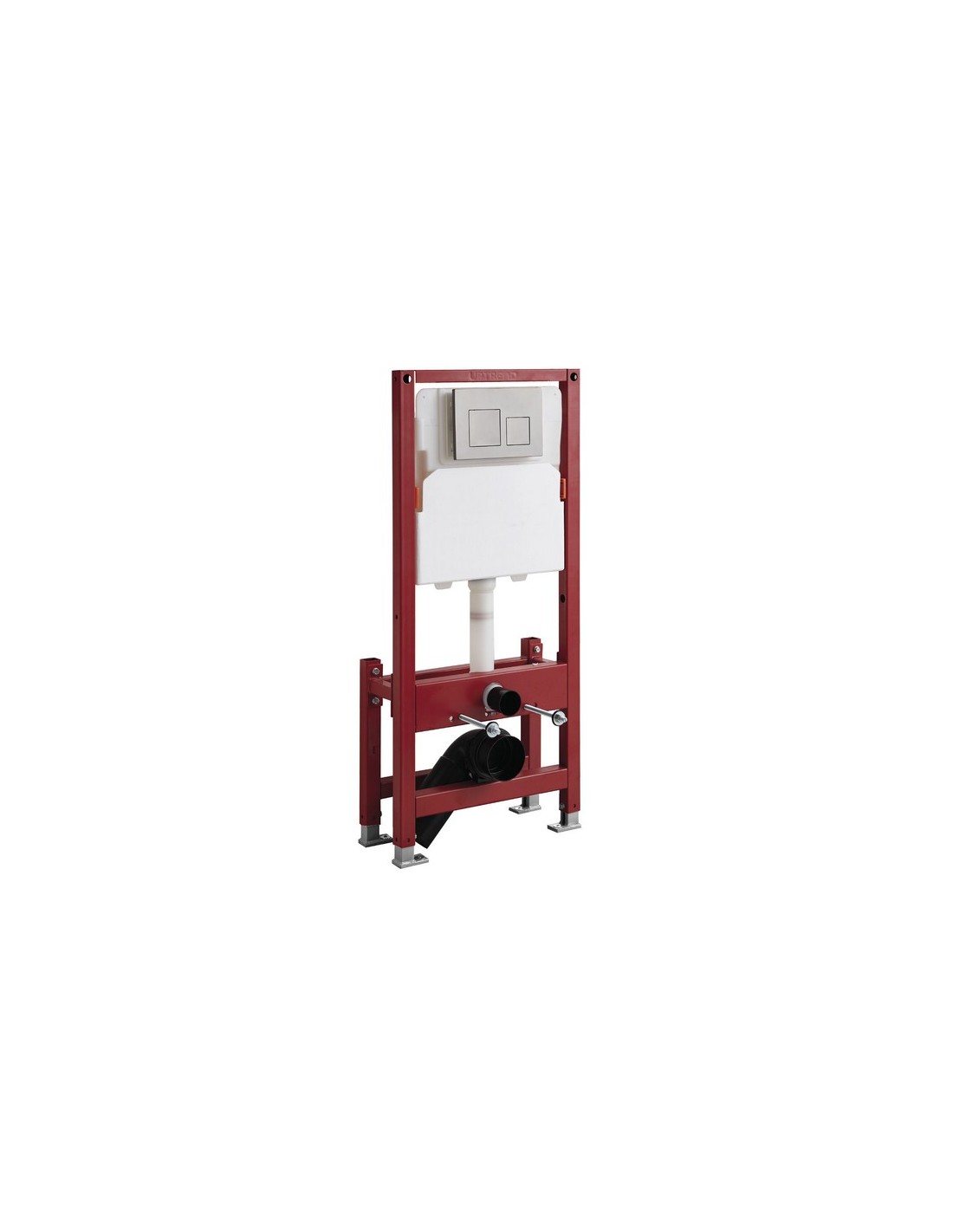

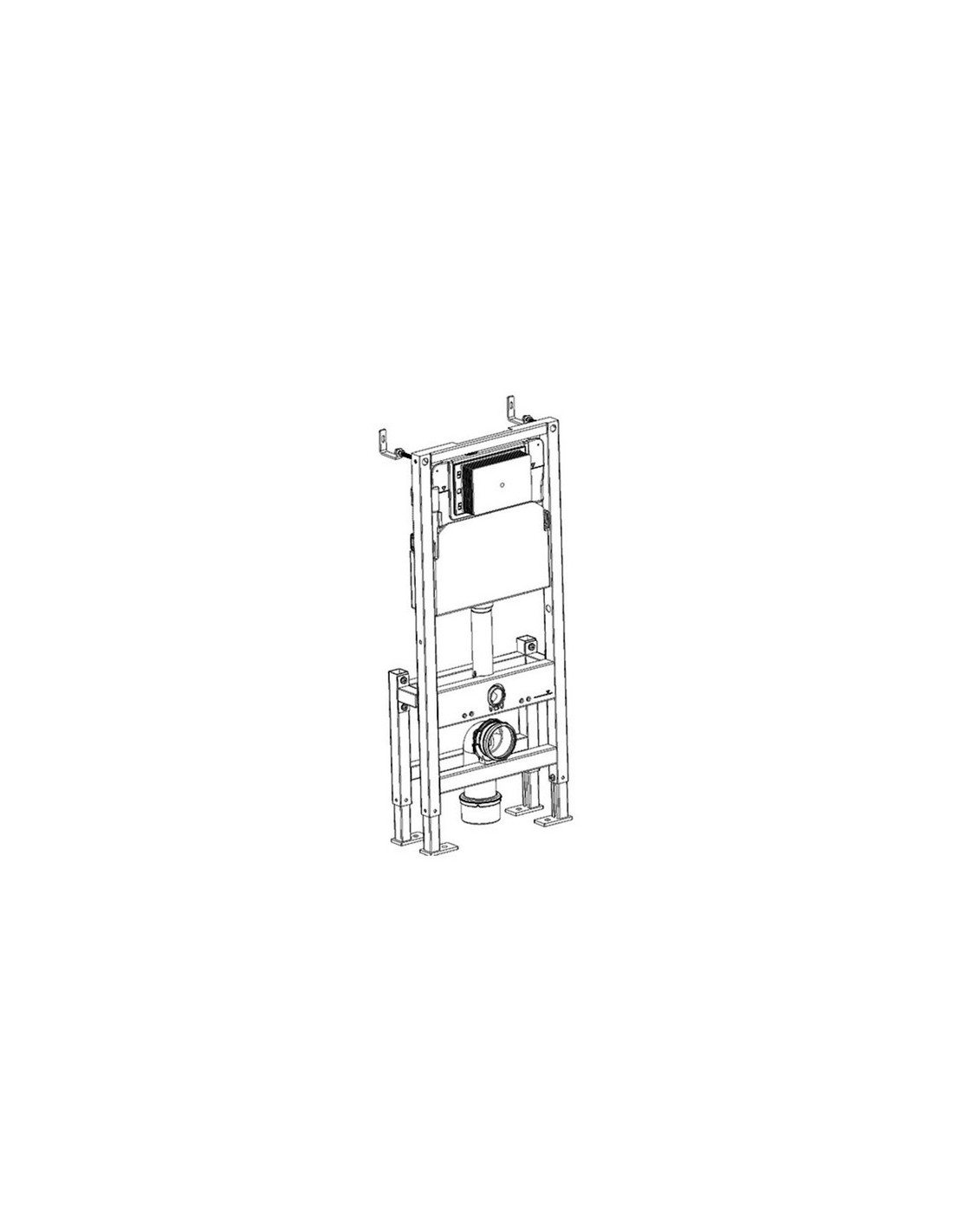

The Support building Duo is a universal chassis. He attaches himself to a wall and to the ground. He's rheight adjustable to install your Cuvette WC suspended or PMR toilet (adapted for people with reduced mobility). The Duo wall frame is designed for use with all our bowls WC suspensions (Setting centre 180 or 230 mm). This chassis is equipped with an integrated tank, double flush 3 and 6 liters. The hunting mechanism is accessible through a visiting hatch. The tank is insulated to avoid condensation.
Complete installation of your WC suspended with one of our trigger plates.
This Duo Building-Support is installed on any type of support such as a carrying wall, a light bulkhead or a separation wall. The fixation is carried out mainly on the ground with its 4 reinforced feet.
Equipped with a silent floating tap. Completely supplied with flushing tube, bulkhead crossing tunnel, shut-off valve, tank-tube, universal discharge system, vertical exit or horizontal exit with single connection. Complete screwdriver, adjustable wall fasteners, threaded rods and nut cover. PVC discharge 100 mm diameter adjustable in depth.
Good to know: The self-supporting frame is fixed to the ground on a concrete slab. It is equipped with adjustable feet that strengthen the metal structure.
Characteristics of Toilet support building duo suspended:
- For installation on all types of supports (carrier wall, light bulkhead or separation wall).
- Optimal attachment with 4 reinforced feet
- Height adjustable support construction
- Floor and/or wall mounting equipment
- For mounting a suspended toilet bowl with mounting bracket 18 or 23 cm.
- For a hat height of 0 to 20 cm.
- For frontal trigger.
- Recess tank with front control.
- Mechanical double flow tank 3 or 6 litres
- Isolated tank against condensation
- Installation toilet toilet suspended or toilet PMR
- Silent float valve
- Escape pipe to be glued in PVC diameter 100 mm
- Binding kit with drain and feeding sleeves provided.

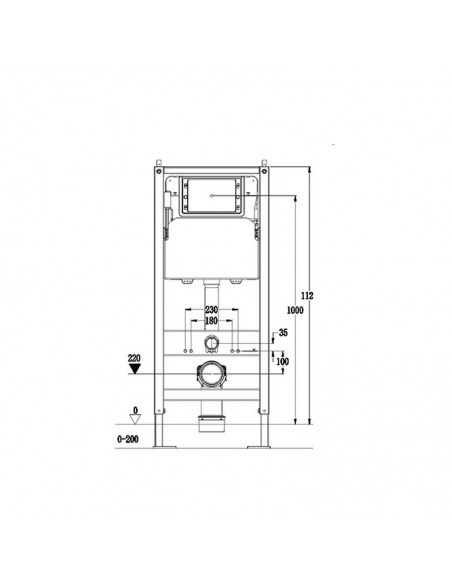

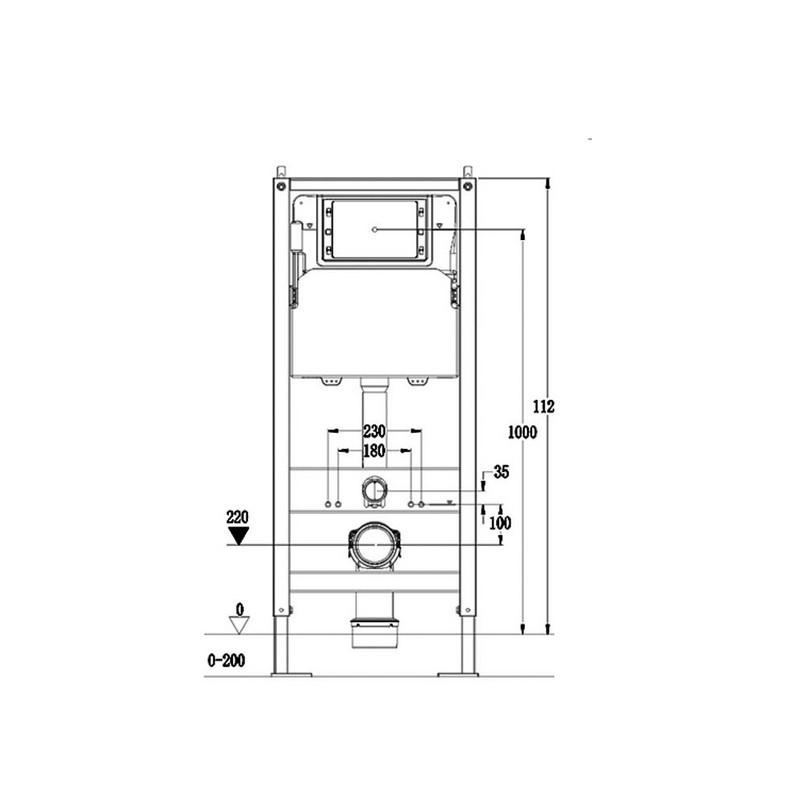

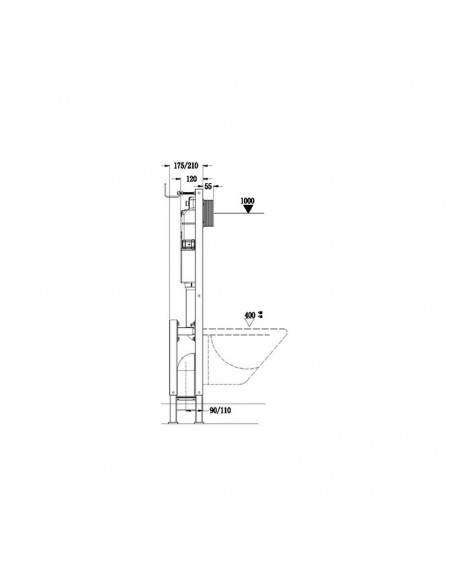

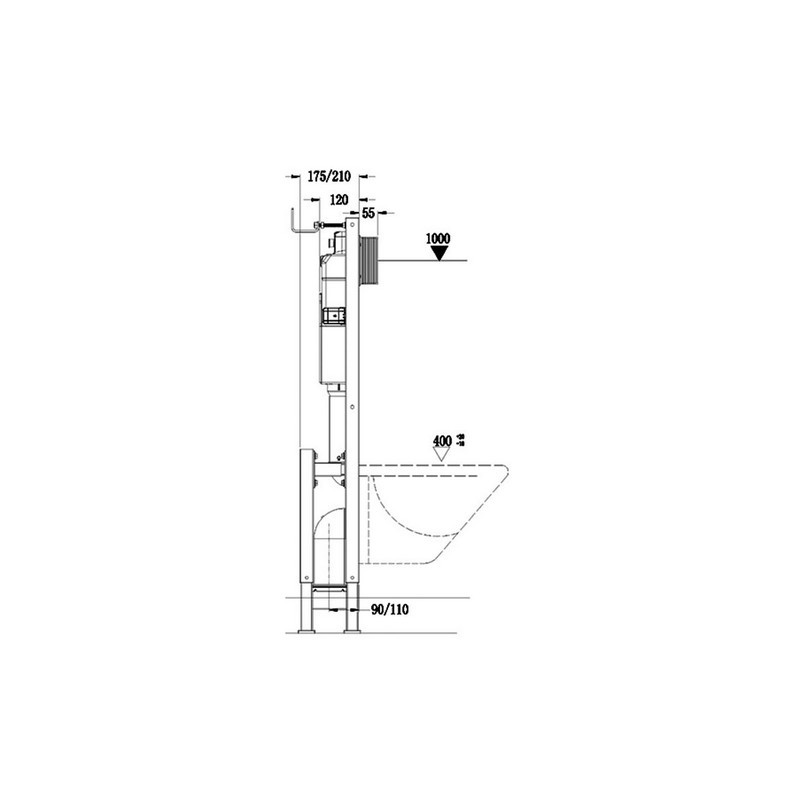

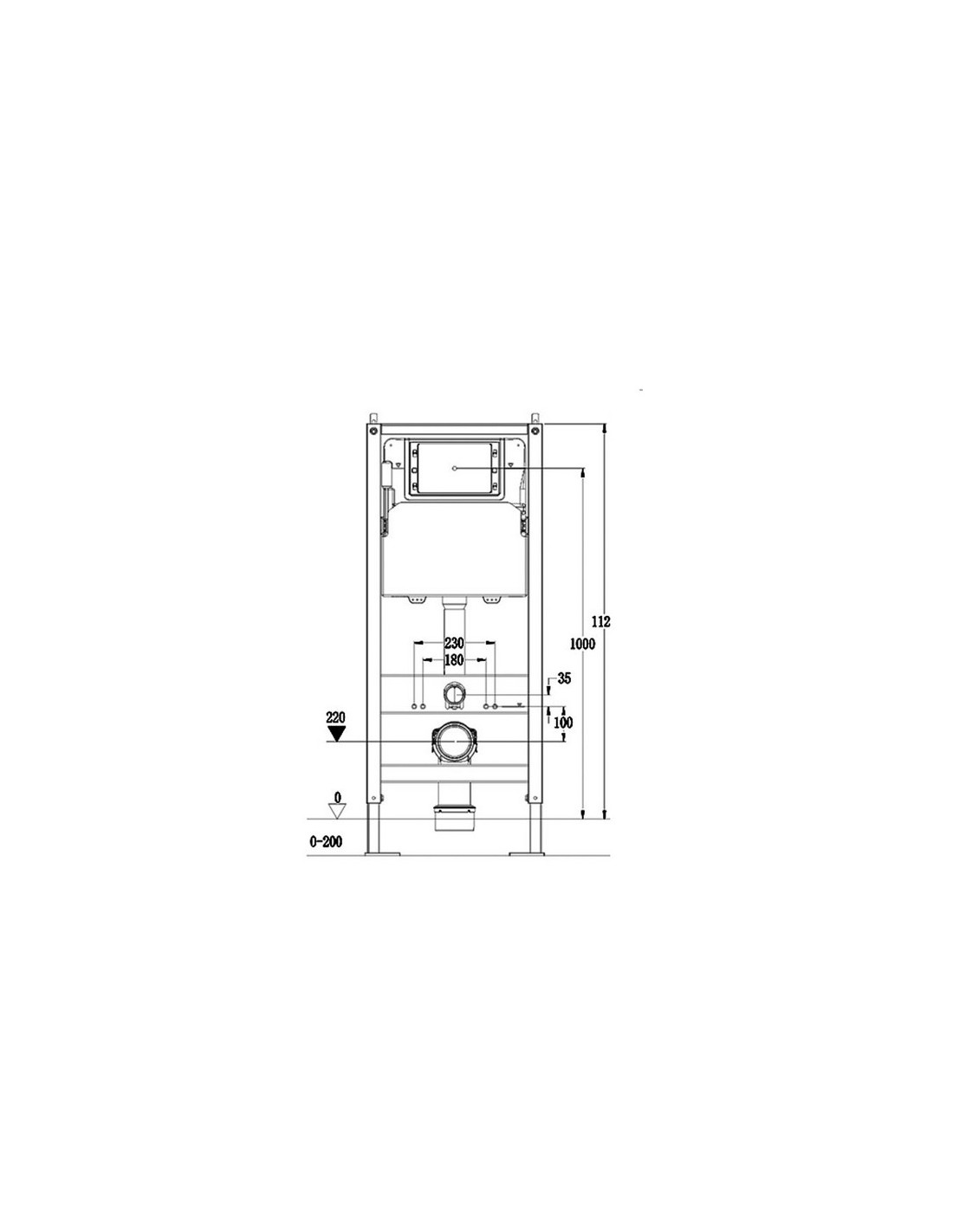

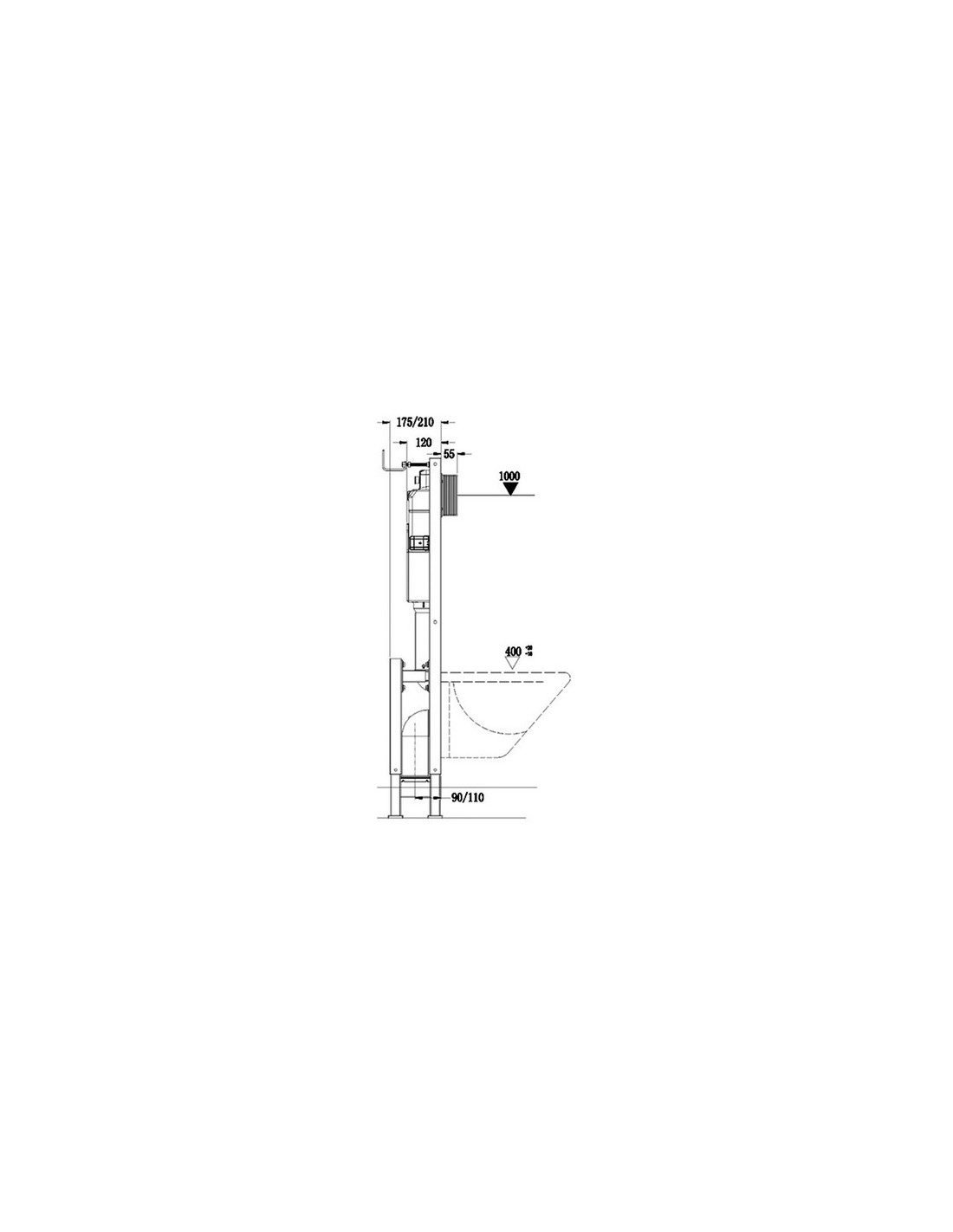

Dimensions of the suspended toilet building:
- Depth: 175/210 mm
- Width: 500 mm
- Height: 1125 mm
- Location of trigger plate at 1000 mm height
- Weight: 17 kg
Guarantee: 2 years
Not included : WC Cuvette - Slaughterer - Control plate
Brand : Rue du Bain
