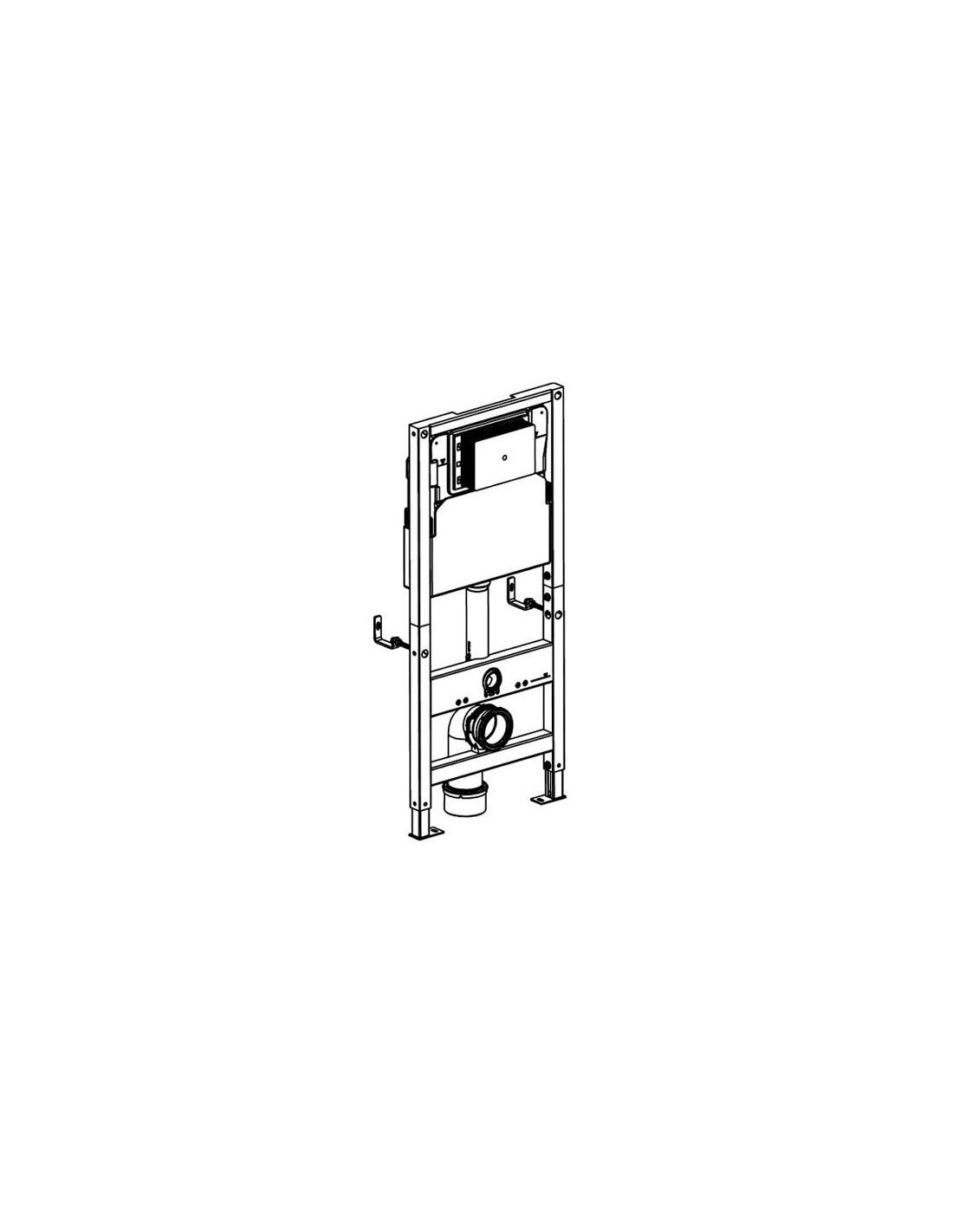

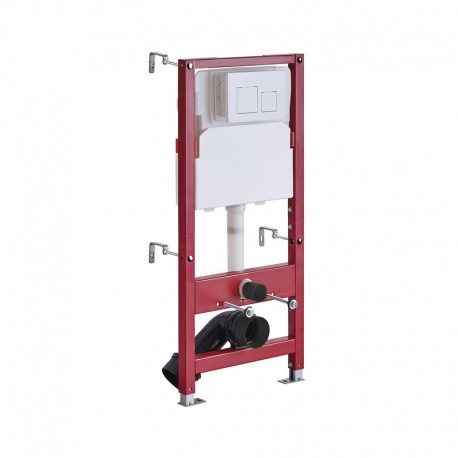

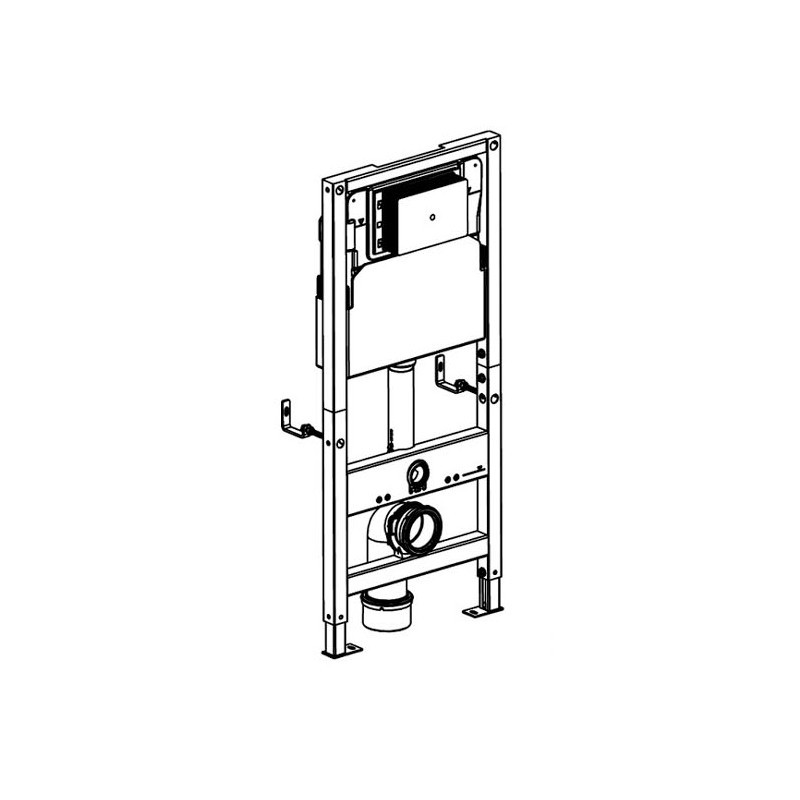

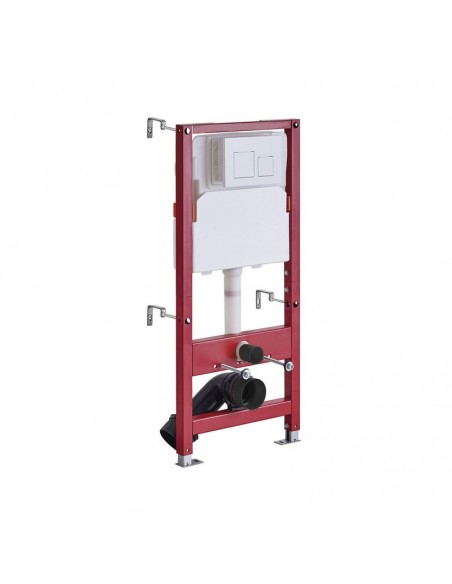

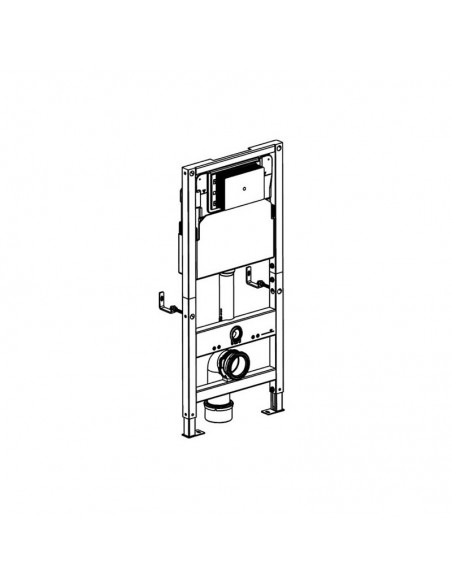

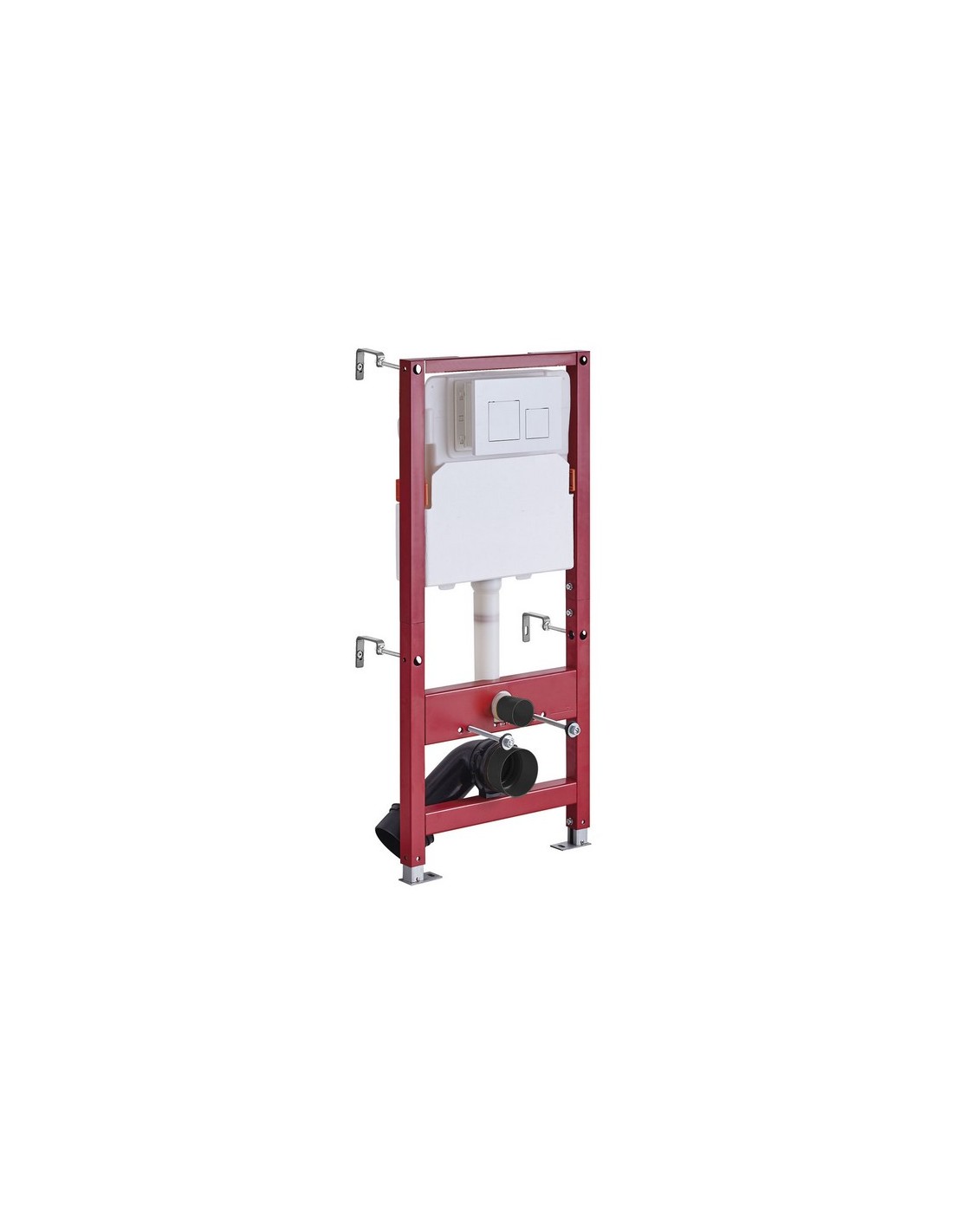

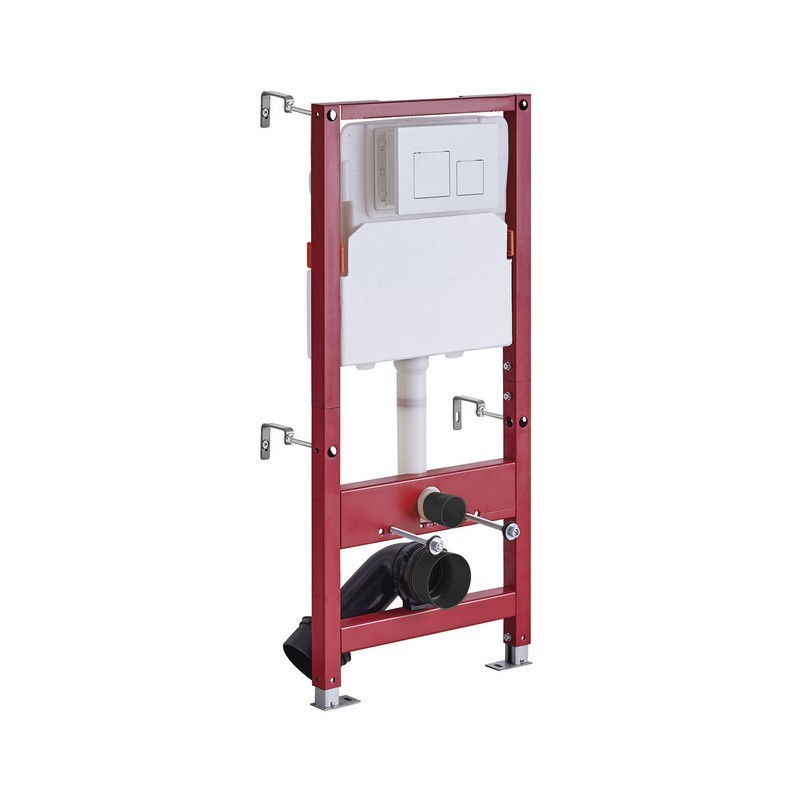

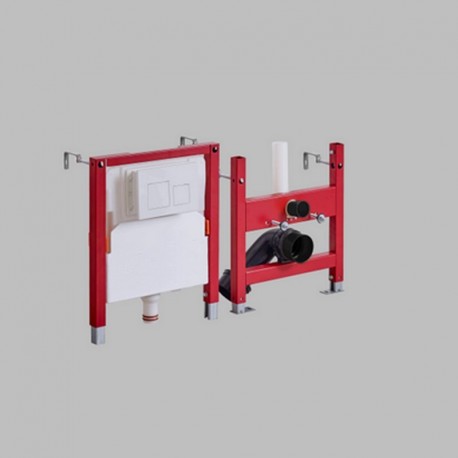

The Solo Fix Support Building is rheight adjustable to install your Cuvette WC suspension or PMR toilet (Person with reduced mobility).
The support frame is designed for use with all our bowls WC suspended. Mounting distance of the WC suspended 180 or 230 mm and height up to 400 mm from the finished floor. This chassis is equipped with an integrated tank, double flush 3 and 6 liters. The hunting mechanism is accessible through a visiting hatch. The tank is insulated to avoid condensation.
Complete installation of your WC suspended with one of our Space release plates.
Equipped with a silent floating tap. Completely supplied with flushing tube, bulkhead crossing tunnel, shut-off valve, tank-tube, universal discharge system, vertical exit or horizontal exit with single connection. Complete screwdriver, adjustable wall fasteners, threaded rods and nut cover. PVC discharge 100 mm diameter adjustable in depth.
This is Construction-support for hanging toilet installs exclusively on a carrying wall, in front of a full wall or in agglo.
Features of the Solo Fix support building for hanging toilet:
- For installation exclusively on a carrying wall.
- For mounting a suspended toilet bowl with mounting bracket 18 or 23 cm.
- For a hat height of 0 to 20 cm.
- For frontal trigger.
- Recess tank with front control.
- Mechanical double flow tank 3 or 6 litres
- Isolated tank against condensation
- Silent float valve
- Escape pipe to be glued in PVC diameter 100 mm
- Floor or wall mounting equipment
- Binding kit with drain and feeding sleeves provided.

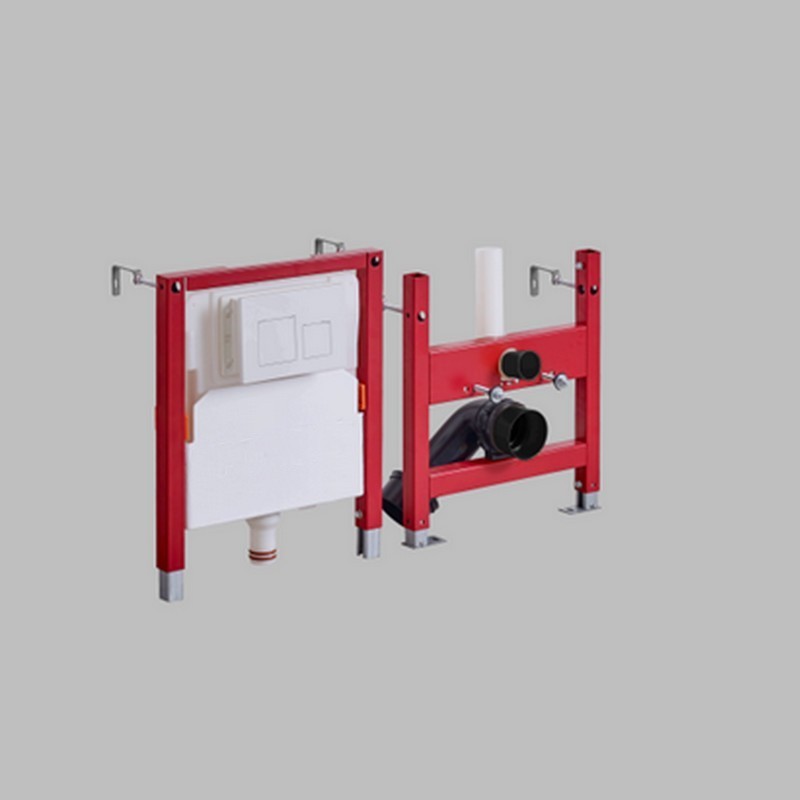

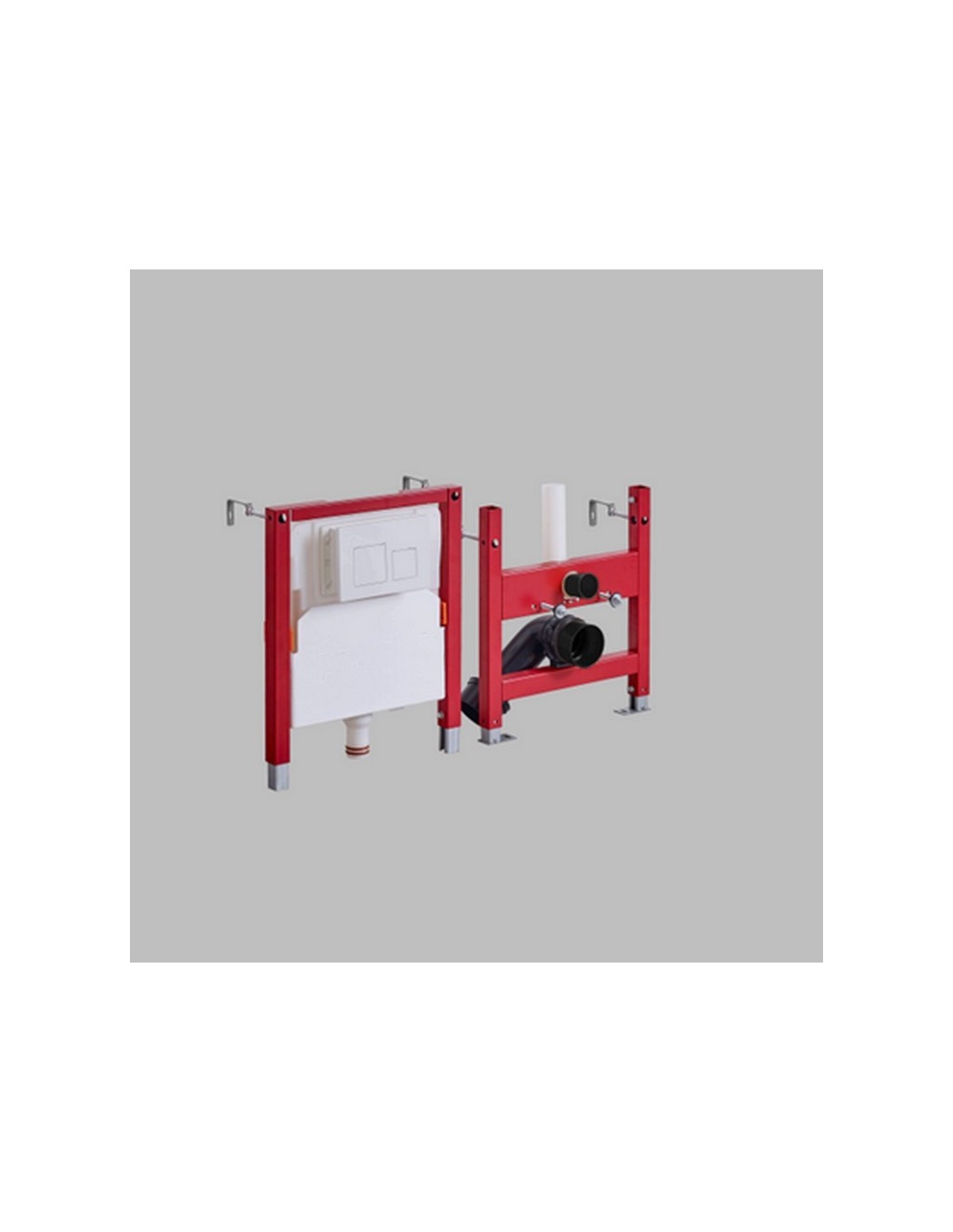

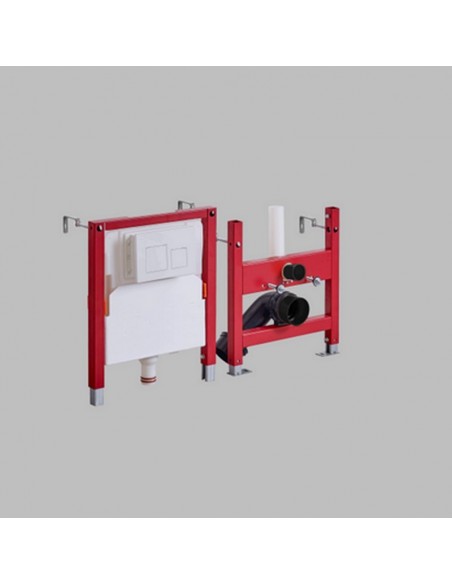

- Deliver in two parts.

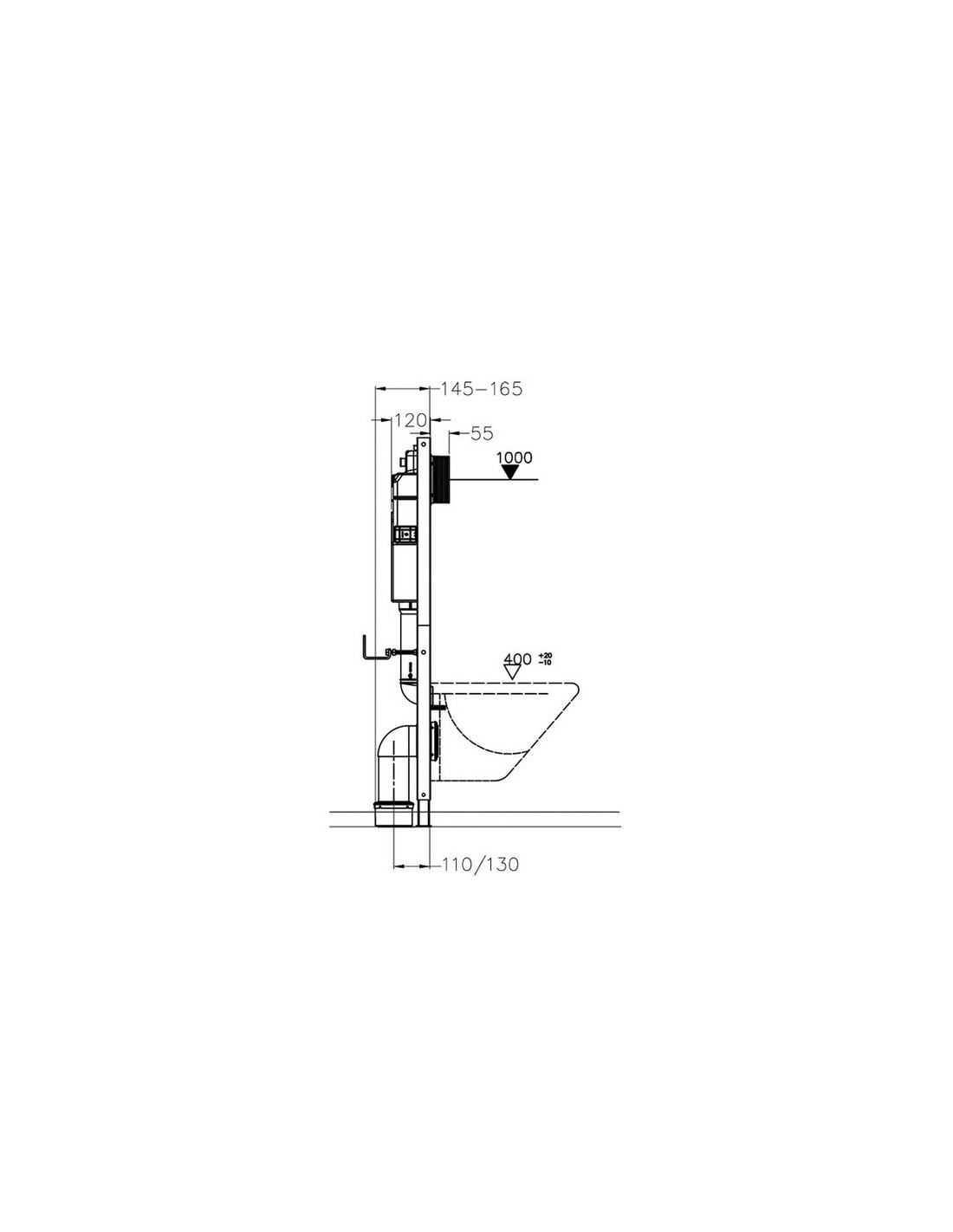

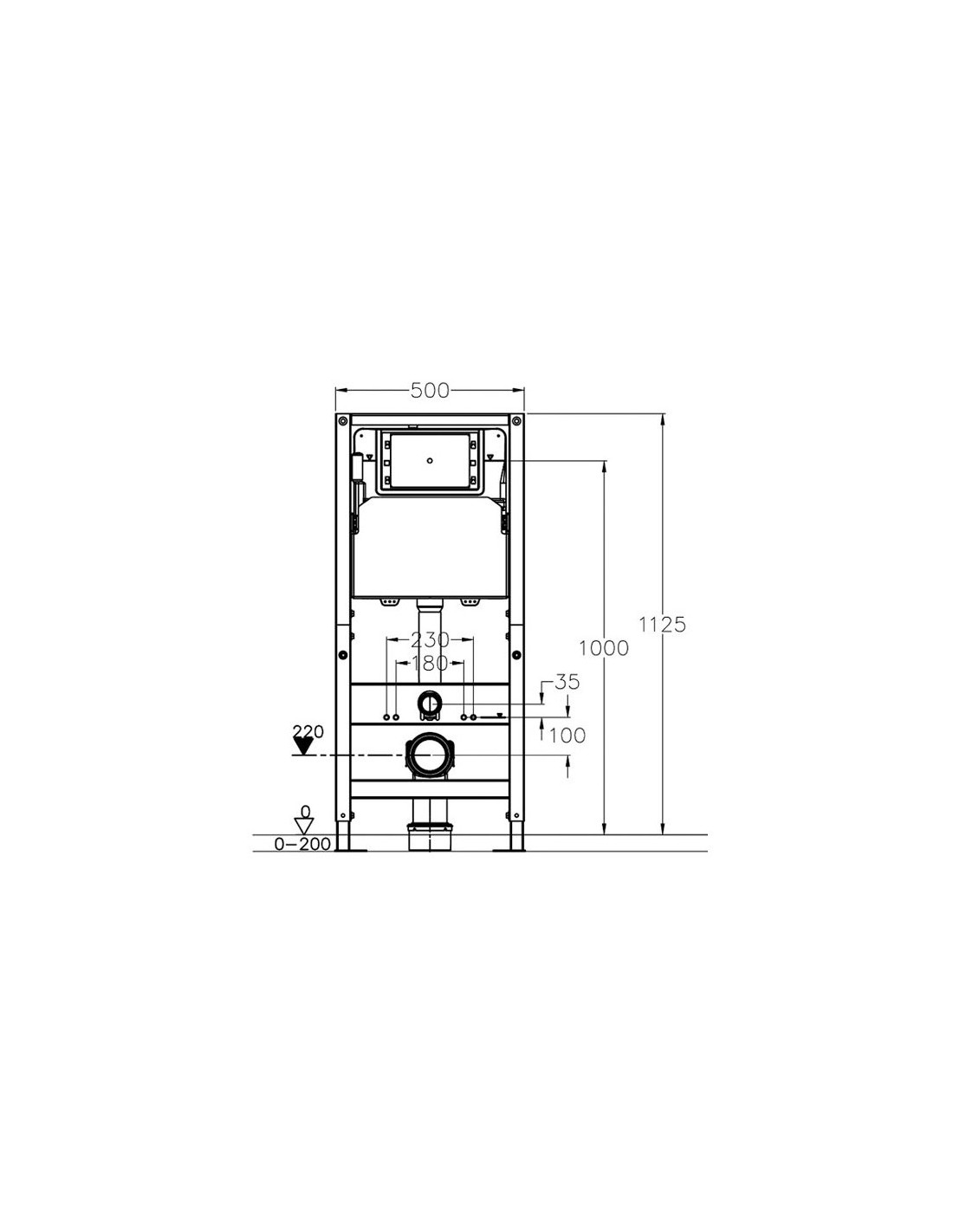

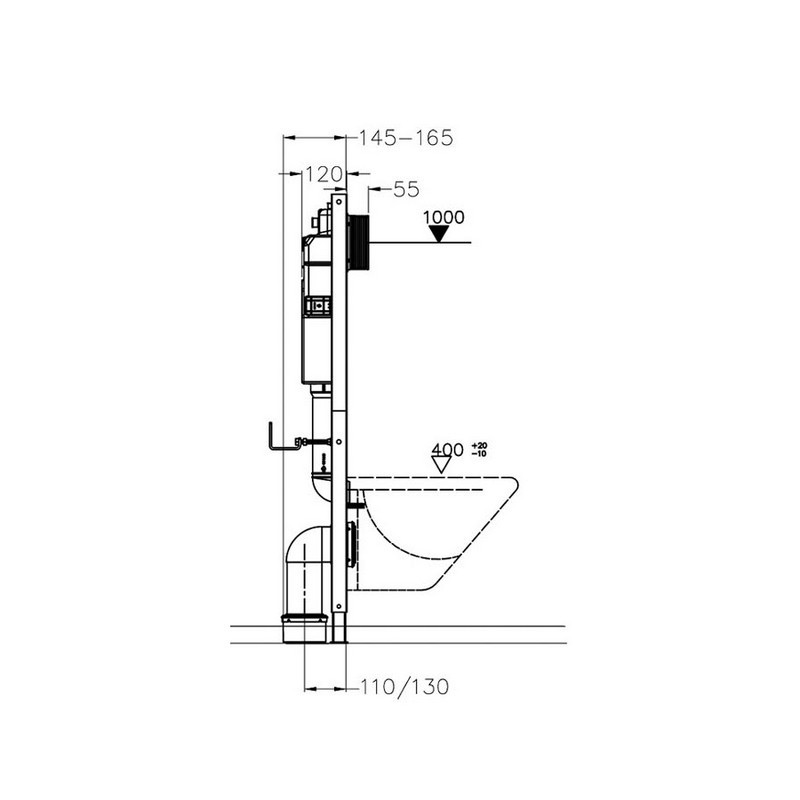

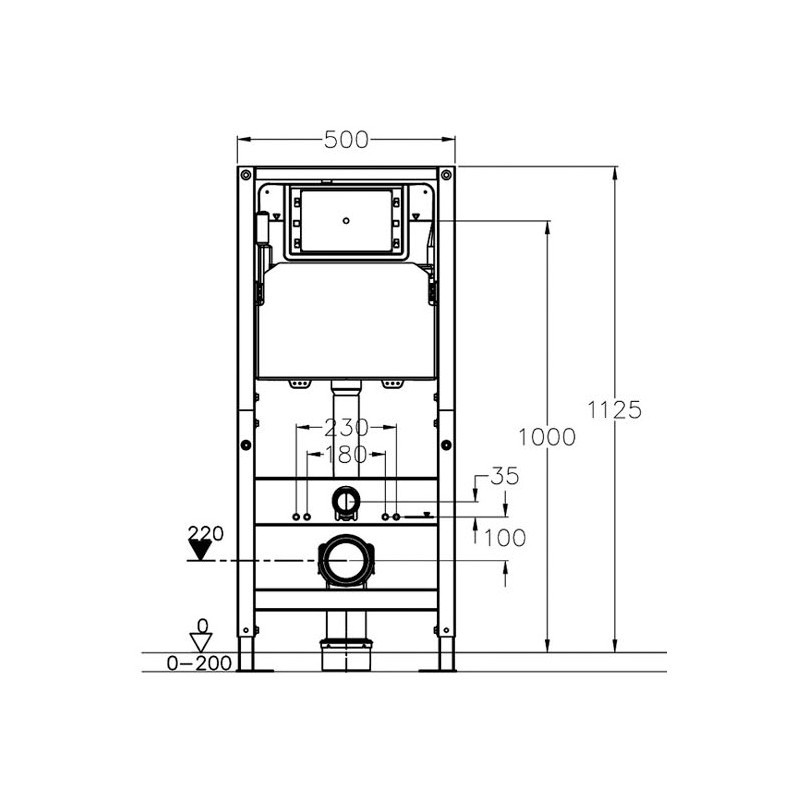

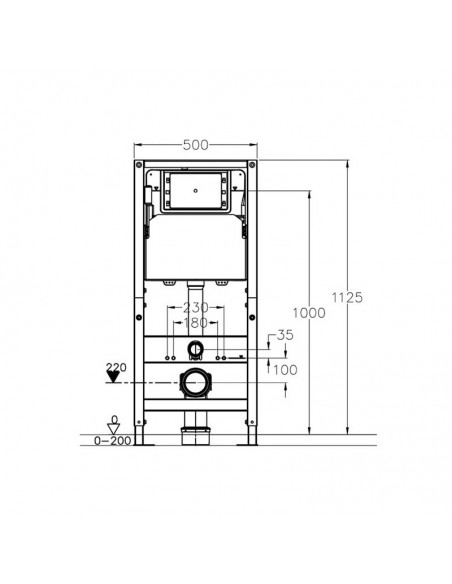

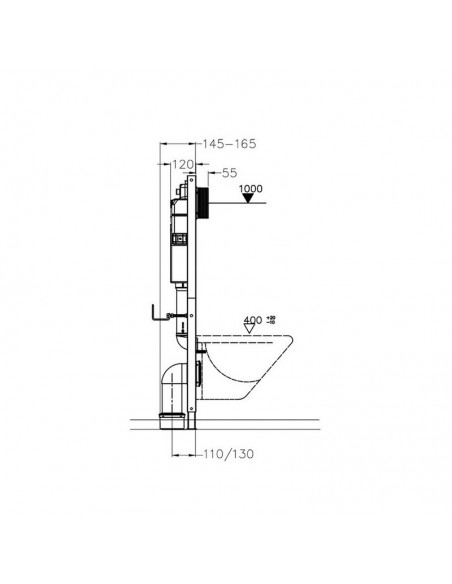

Dimensions of the suspended toilet building:
- Width: 500 mm
- Adjustable depth : 145 / 165 mm
- Height: 1125 mm.
- Location of trigger plate at 1000 mm height
- Weight: 23.50 kg
Guarantee: 2 years
Not included : WC Cuvette - Slaughterer - Control plate
Brand : Rue du Bain
