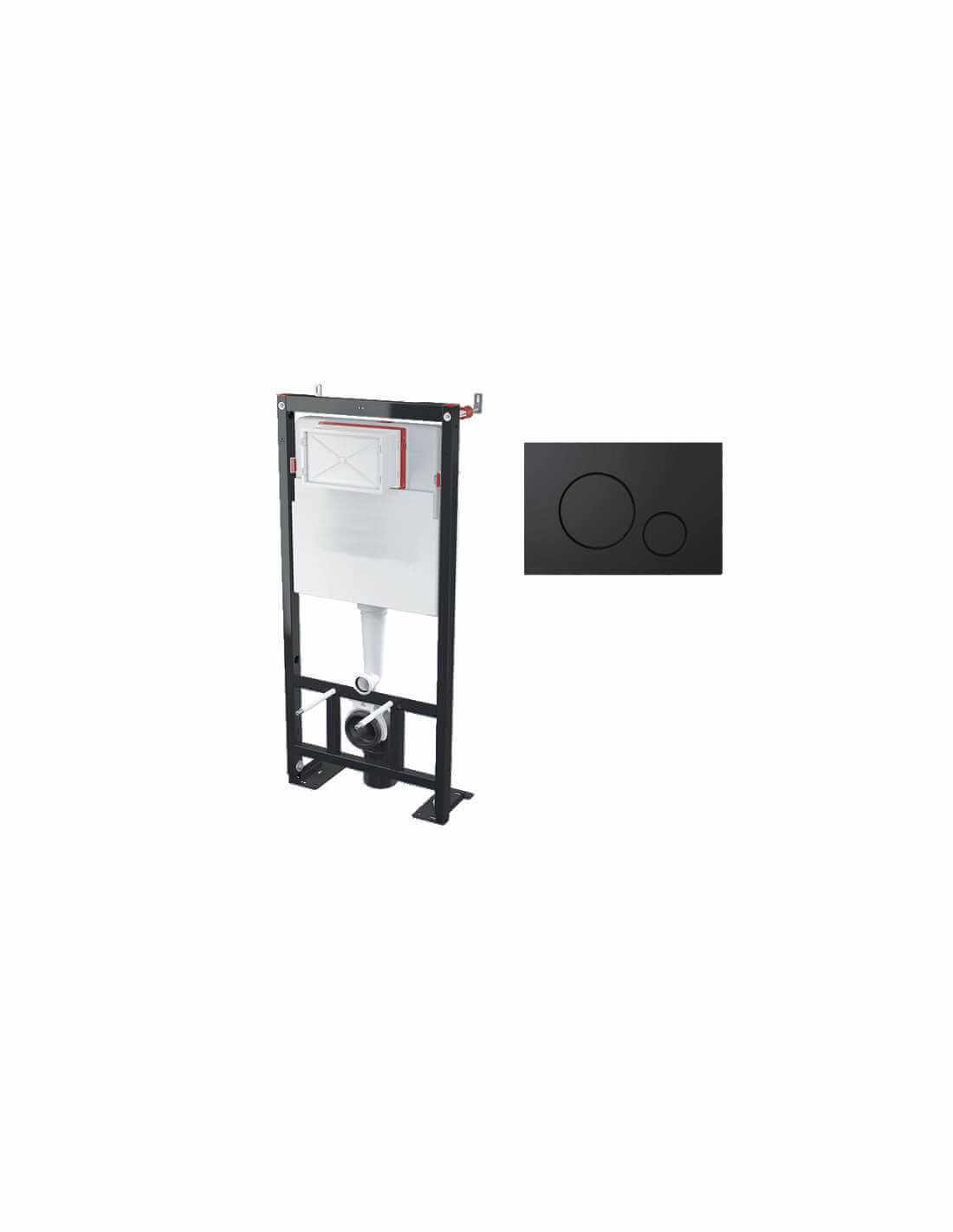

Pack Bati Universal WC holder BF 101 + Control plate Black Mat

The BF 101 self-supporting frame is a self-supporting frame for installing your suspended toilet or toilet. This vessel complies with the current EC standards: EN 14124 and EN 14055, all types of EC or NF bowls will adapt without problems. Adaptable on all types of supports (placo, agglo, bricks). Self-supporting feet reinforced and adjustable in height.

The freestanding universal support frame BF101 is rheight adjustable for a toilet suspended design or extended PMR bowl. Two 180 or 230 mm fasteners are available, the range of foot height adjustment is 0 to 200 mm. The tank is insulated to avoid condensation. The evacuation is provided for a PVC diameter 100 mm. Accessibility through a visit hatch 116 x 180 mm to the whole hunting mechanism. Equipped with a silencing class 1 float valve. Completely supplied with flushing tube, bulkhead crossing tunnel, shut-off valve, tank-tube, universal discharge system, vertical exit or horizontal exit with single connection. Complete screwdriver, adjustable wall fasteners, threaded rods. Double flow 3/6 liters. Delivered without plate.

Composition Hanging toilet construction:

• EC certified product standards: EN 14124 and EN 14055
• Double hunting tank 3 or 6 litres
• Installation suspended basin design or extended PMR.
• Recessed tank insulated against condensation
• Anthracite grey steel frame.
• Silent float valve
• Escape pipe to be glued in PVC diameter 100 mm
• Floor or wall mounting equipment
• Warranty 5 years
• Binding kit with drain and feeding sleeves provided.

Dimensions of the construction-support for toilet bowl suspended design :

• Depth : 20 cm
• Length: 51 cm
• Height: 112 cm
• Weight: 15 kg

Not including: Cuvette WC

Brand : Rue du Bain
